High-Density Distribution for Modern Media Facilities

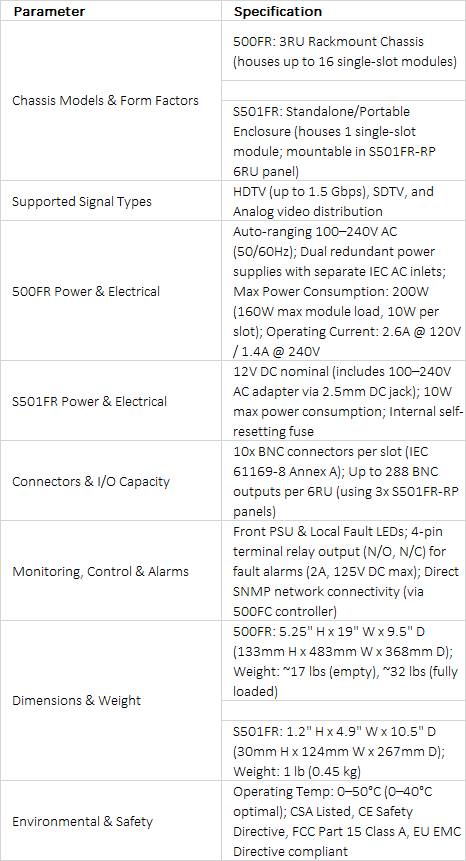

The Evertz 500FR and S501FR Compact Distribution Frames deliver a robust, space-saving infrastructure solution for high-density broadcast, telecommunication, and production environments. Designed as a 3RU frame, the 500FR houses up to 16 single-slot 500-series modules, supporting up to 288 BNC outputs across a 6RU configuration. Engineered for demanding multi-rate environments, the chassis handles 1.5Gb/s HDTV, SD-SDI, and analog video signals with uncompromising performance.

Front-Access Serviceability and Power Redundancy

Operational continuity is essential in mission-critical facilities. The 500FR features a front-loading design that allows technical teams to insert, inspect, or extract processing modules on the fly without disturbing active signal paths or disconnecting rear cables. To guard against power grid disruptions, the frame integrates dual redundant, auto-ranging AC power supplies (100–240V AC) with separate mains inlets, reducing single-point-of-failure risks and simplifying facility maintenance.

Flexible Standalone Options and Direct Network Control

For specialized or remote applications, the S501FR offers a standalone single-module enclosure that can be mounted using the S501FR-RP rack panel, perfect for tight utility spaces and localized distribution feeds. Both configurations support direct integration into SNMP network management systems via VistaLINK frame controllers. By eliminating the need for third-party protocol translation servers, the system minimizes network latency, reduces installation complexity, and ensures reliable central telemetry for your entire signal path.
