Evertz 500IDA9-IG / 500IDA9-HD-IG | HD/SD-SDI Intelligent 1x9 Distribution Amplifier with Loudness Control & Audio Shuffling

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density 1x9 Distribution: Provides one SDI input to nine fully reclocked and equalized serial outputs.
Advanced Audio Processing: Supports embedded mono channel shuffling, 5.1-to-2-channel stereo downmixing (+DMX), and ITU-R BS.1770 compliant loudness control.
Long-Reach Cable Equalization: Supports cable runs up to 140m at 1.5Gb/s HD-SDI and 350m at 270Mb/s SD-SDI over Belden 1694A.
VistaLINK® SNMP Monitoring: Provides signal presence detection, real-time monitoring, and trend logging through Evertz VistaLINK® network management.
Multi-Standard SDI Support: Available in SD-SDI (500IDA9-IG) or dual-rate HD/SD-SDI (500IDA9-HD-IG) variants supporting SMPTE ST 292-1 and ST 259-C.
High-Density 500FR Integration: Occupies one slot in the 3RU Evertz 500FR frame, supporting up to 15 modules with a 500FC or 500FC-DA-HD Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Signal Distribution with Built-In Audio Processing

The Evertz 500IDA9-IG and 500IDA9-HD-IG are intelligent 1x9 reclocking distribution amplifiers designed for demanding broadcast facilities, master control rooms, and mobile production units. By combining long-reach signal equalization and high-density distribution with advanced audio manipulation and loudness control, these modules eliminate the need for dedicated downstream audio processors.

Advanced Audio Conditioning & Compliance

Unlike standard distribution amplifiers, the 500IDA9-IG series integrates onboard DSP capabilities to streamline digital audio workflows:

ITU-R BS.1770 Loudness Control: Automatically manages embedded audio levels to maintain compliance with international broadcast loudness mandates (CALM Act / EBU R128).
Embedded Audio Shuffling: Enables flexible remapping and shuffling of mono embedded audio channels directly on the card before signal fan-out.
5.1 to Stereo Downmix (+DMX): Integrates 5.1 surround sound downmixing to generate 2-channel stereo tracks for legacy monitoring or secondary feed transmission.

Signal Integrity & Network Supervision

Featuring multi-stage reclocking and automatic input equalization, the module recovers high-frequency cable attenuation across runs up to 140 meters at HD-SDI bitrates and 350 meters at SD-SDI bitrates. Full SNMP compatibility enables comprehensive remote control, status telemetry, and real-time trend logging when paired with an Evertz frame controller and VistaLINK® NMS.

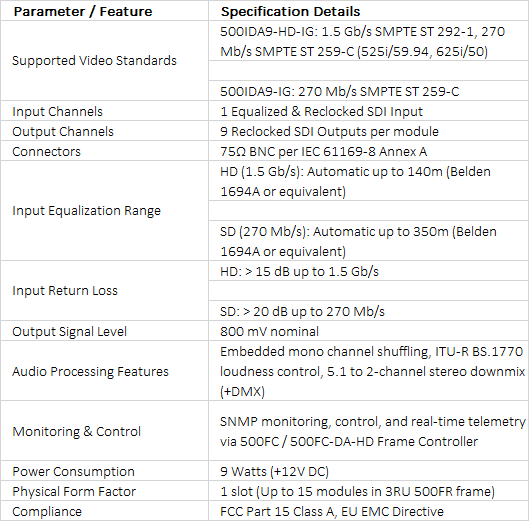

Technical Specifications +

technical specifications
