Evertz 501ADA-EQ | Analog Video Distribution Amplifier with Cable Equalization (1x9)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Long-Reach Cable Equalization: Compensates for attenuation across 0–300m of Belden 8281 or 1694A coaxial cable.
1x9 Signal Distribution: Provides one balanced equalized input to nine unbalanced 75Ω BNC outputs.
Broad Analog Compatibility: Supports 75Ω analog video, timing pulses, and sync signals up to 2V p-p across 30MHz bandwidth.
Selectable Input Configuration: Jumper-selectable 75Ω termination or 35kΩ Hi-Z input impedance with AC or DC coupling.
High CMRR & Fail-Safe Impedance: Provides >70dB common mode rejection at 1kHz and maintains input impedance during frame power loss.
VistaLINK® Monitoring & Diagnostics: Provides card-edge status LEDs for power, module health, and EQ warnings, with SNMP monitoring via a 500FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Analog Distribution with Integrated Cable Equalization

The Evertz 501ADA-EQ is a general-purpose 1x9 analog video distribution amplifier engineered to restore and distribute video, sync, and timing signals over long coaxial runs. Designed with an adjustable equalization stage, it compensates for frequency response losses across up to 300 meters of broadcast coaxial cable, making it ideal for master control rooms, venue distribution, and long-distance tie-line runs.

Versatile Signal Conditioning & High Common-Mode Noise Rejection

The module provides complete control over analog signal parameters to maintain picture fidelity:

Equalization & Gain Control: Continuous cable equalization (0–300m) paired with a ±5 dB gain adjustment range to restore signal amplitude and high-frequency loss.
Flexible Termination & Coupling: Features jumper-selectable 75Ω or 35kΩ Hi-Z input termination (allowing looping setups with an external "T" connector) and configurable AC or DC coupling.
Interference Rejection: Features a balanced input with high Common Mode Rejection (>70 dB at 1 kHz) and a >6V p-p common mode range to mitigate hum and ground loop interference.

High-Density Modular Design & Telemetry

Occupying a single slot in the 3RU Evertz 500FR frame (up to 16 cards per chassis), the 501ADA-EQ features card-edge LEDs displaying module health, power status, and EQ Warning alerts. When configured with a 500FC Frame Controller, it integrates seamlessly into the Evertz VistaLINK® ecosystem for remote SNMP monitoring and diagnostic logging.

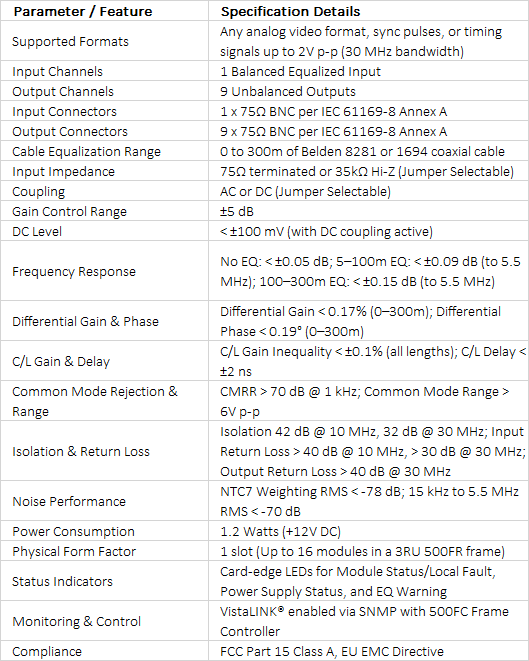

Technical Specifications +

technical specifications
