Evertz 570DSK-12G-F Single Path Downstream HD/3G/UHD SDI Keyer with Logo Insertion

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format Downstream Keying: Supports 12G/3G/HD-SDI up to 3840×2160p @ 50/59.94Hz in SDR and HDR.
Dual 16-Bit RGB Keying: Provides two independent key/fill layers with gain, clip/offset, key inversion, self-keying, and additive/multiplicative blending.
Global Branding Engine: Supports static or animated logos up to full-screen graphics with X/Y positioning, layer priority, and alpha control.
250GB Onboard SSD: Stores hundreds of graphics, logos, and animated bugs with expandable storage options.
Clean & Quiet Switching: Provides seamless video fade-in/fade-out and artifact-free audio/video transitions for on-air switching.
Control & Automation: Integrates with Evertz VUE, WebUI, SNMP monitoring, and M2100 third-party automation over TCP/IP.
570 Series Architecture: 2-slot module compatible with 570FR (3RU/15-slot) and S570FR (1RU/4-slot) broadcast chassis.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Next-Generation 12G-SDI Downstream Keying

The Evertz 570DSK-12G-F is a software-enabled downstream keyer engineered for UHD/4K, 3G, and HD broadcast channels, regional playout centers, and venue production suites. Built on a deterministic FPGA video processing core paired with onboard compute resources, the 570DSK delivers ultra-low-latency keying with the flexibility to activate future functionality via software upgrades without replacing hardware.

Independent Dual Keyers & Global Branding Engine

The module features two dedicated 16-bit linear RGB key/fill layers alongside an independent global branding layer. The dedicated branding engine handles static and animated logos—ranging from subtle corner bugs to full-screen motion graphics—without consuming standard key/fill inputs. Software-enabled licenses allow further expansion for live dynamic text crawls and Emergency Alert System (EAS) text insertion. Graphics management is streamlined via an onboard 250GB SSD and an intuitive Web UI for asset ingest over local networks.

Flexible Network Control & Modular High Density

Designed for modern IP-managed control rooms, the 570DSK includes dual 10/100/1000 Ethernet interfaces for redundant network control, Web UI asset management, and SNMP monitoring. It interfaces smoothly with Evertz VUE touch and tactile panels or major third-party automation software using the industry-standard M2100 protocol over TCP/IP. Occupying just 2 slots in Evertz 570-series frames, it delivers high-density UHD channel branding for space-constrained facilities.

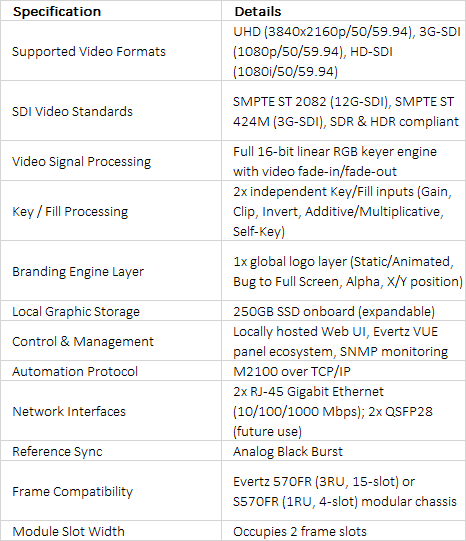

Technical Specifications +

technical specifications
