Evertz 570DSK-25G Single Path Downstream HD/3G/UHD IP Keyer with Logo Insertion

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format SDI Keying: Supports 12G/3G/HD-SDI up to 3840×2160p @ 50/59.94Hz in SDR and HDR.
Dual 16-Bit RGB Keying: Provides two independent key/fill layers with gain, clip/offset, key inversion, self-keying, and additive/multiplicative blending.
Global Branding Engine: Supports static/animated logos up to full-screen graphics with X/Y positioning, layer priority, and alpha control.
250GB SSD Storage: Stores graphics, logos, and animated bugs with support for expanded graphic libraries.
Clean & Quiet Switching: Enables seamless video fade-in/fade-out and artifact-free audio/video transitions.
Control & Automation: Integrates with Evertz VUE, WebUI, SNMP, and M2100 automation over TCP/IP.
570 Series Architecture: 2-slot module compatible with 570FR (3RU/15-slot) and S570FR (1RU/4-slot) chassis.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Modern SMPTE ST 2110 IP Downstream Keying

The Evertz 570DSK-25G is an enterprise-grade downstream keyer designed specifically for IP-native broadcast facilities, live production environments, and playout centers migrating to SMPTE ST 2110 standards. Combining FPGA-driven video processing with onboard compute resources, the module delivers ultra-low latency keying across HD, 3G, and UHD 4K formats (up to 3840x2160p 50/59.94) in both SDR and HLG HDR environments over 100GbE fabric.

Redundant IP Architecture & Control

Built for mission-critical broadcasts, the 570DSK-25G incorporates SMPTE ST 2022-7 hitless redundancy to guarantee uninterrupted signal paths during network failover. PTP timing synchronization (SMPTE ST 2059) ensures precise phase alignment. Network management and routing are streamlined using open standards like NMOS IS-04 (Discovery) and IS-05 (Connection Management) with SDP files.

Independent Keyers & High-Density Branding

The board separates branding from live keying by providing two 16-bit RGB key/fill layers plus a dedicated global branding layer. The global logo layer handles static/animated bugs, time/date/temp displays, and optional text crawls/EAS overlays without compromising external key inputs. Assets are stored locally on a 250GB SSD and ingested via Web UI. Occupying just 1 slot in Evertz 570FR (3RU) or S570FR (1RU) frames, it offers double the channel density of its SDI counterparts.

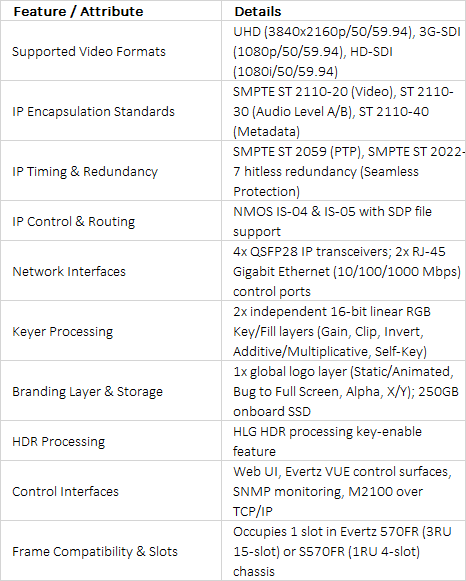

Technical Specifications +

technical specifications
