Evertz 570EMC UHD-Capable Master Control Switching & Channel Branding Engine

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

UHD / SDI Processing: License-upgradable engine supports HD, 3G-SDI, and 12G-SDI/4K UHD up to 3840 × 2160p.
Hybrid SDI & ST 2110: Supports coaxial SDI and SMPTE ST 2110 IP workflows with AMWA NMOS.
Logo Compositing: Onboard compositor with 250GB SSD for static and animated logo storage.
Dual Key/Fill Layers: 16-bit RGB keyers with gain, clip, invert, and self-key controls.
Audio Processing: Provides 16-bit mixing, routing, mono mixing, channel shuffling, voiceovers, and MADI up to 64 channels.
Automation & Control: Integrates with M2100, VUE, VistaLINK SNMP, and web-based control.
Modular I/O: Dual QSFP28 architecture supports up to 8 SDI, FX-LINK, or ST 2110 inputs and 8 outputs in a 2-slot module.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Future-Proof Master Control & Channel Branding

The Evertz 570EMC is a high-density master control switcher and channel branding engine designed for broadcast TV networks, playout facilities, and live production hubs. Engineered on a flexible modular platform, the 570EMC handles HD and 3G-SDI workflows out of the box and can be software-licensed for 12G-SDI / 4K UHD operation. Its agile architecture supports both traditional baseband SDI and SMPTE ST 2110 uncompressed IP environments with NMOS discovery and control.

Multi-Layer Compositing & Internal Storage

Equipped with a multi-layer internal branding compositor, the 570EMC features a dedicated logo compositing engine alongside two independent 16-bit RGB Key/Fill layers. Branding elements are saved directly to an onboard 250GB solid-state drive (SSD), eliminating external playout storage dependencies. Operators can precisely adjust logo X/Y placement, alpha transparency, and visual layering, or enable optional license add-ons for automated text crawls and Emergency Alert System (EAS) graphics.

Audio Management & Enterprise Control Integration

Beyond video compositing, the 570EMC functions as a full-featured audio mixer. It supports embedded audio, voiceover insertion, mono-mixing, and channel shuffling, plus external MADI I/O for expanded audio workflows. The unit features dual network management interfaces, a built-in web configuration GUI, complete VistaLINK® SNMP status tracking, and compatibility with Evertz VUE touch and tactile panels or M2100 IP automation protocols.

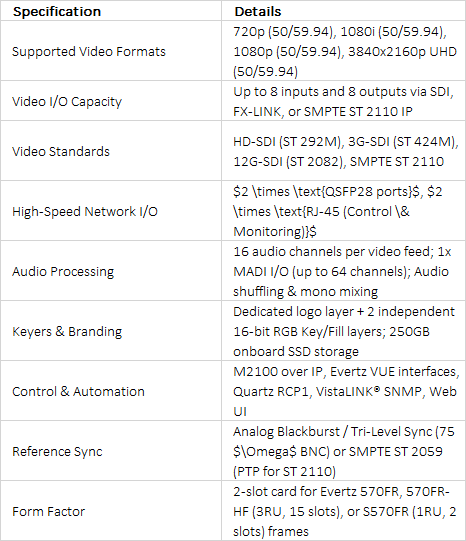

Technical Specifications +

technical specifications
