Evertz 570EMC UHD-Capable Master Control Switching & Channel Branding Module

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Hybrid SDI & IP Architecture: Supports 12G-SDI, FX-LINK, and SMPTE ST 2110 IP networks with NMOS and QSFP28 interfaces.
UHD / 4K Upgradeable: Supports HD/3G-SDI with optional 12G-SDI UHD/4K switching up to 3840×2160p @ 50/59.94Hz.
Channel Branding Engine: Provides static/animated logo storage on a 250GB SSD with X/Y positioning, layer priority, and alpha control.
Dual RGB Key Layers: Offers two independent 16-bit key/fill layers with external inputs, key gain, clip/offset, inversion, and self-keying.
16-Bit Video & Audio Processing: Supports 16-bit processing, 16 embedded audio channels per input, 64-channel MADI, audio shuffling, mono mixing, and voiceover.
WebUI & Automation: Provides browser-based configuration, logo/asset management, M2100 IP automation, and SNMP monitoring.
Hardware Control Integration: Compatible with Evertz VUE environments and EMC-MASTER-KEY-ONE / EMC-MASTER-KEY-48 control panels.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Modern Hybrid Master Control Switching

The Evertz 570EMC provides master control switching and channel branding designed for the 570 series multiframes (570FR / 570FR-HF / S570FR). Built on a flexible architecture, the card connects into upstream routers using either SDI or SMPTE ST 2110 IP media formats. Facilities can deploy in HD/3G environments today and upgrade to Ultra HD (3840x2160p) via software licensing when ready.

Multi-Layer Branding & Graphics Compositor

Operating on a global layer independent of external keyers, the internal branding compositor handles static and animated graphics ranging from channel bugs to full-screen overlays. High-speed 250GB local SSD storage ensures instant recall of media assets. Optional software keys enable dynamic text crawls and Emergency Alert System (EAS) graphics insertion.

Dual Keyers & Control Flexibility

Separate from the logo engine, two independent 16-bit RGB key/fill layers accept external key/fill sources without compromising internal branding. Operator control is driven by Evertz WebEASY for configuration, Evertz VUE touch and tactile panels for live switching, or third-party automation systems using the M2100 IP protocol.

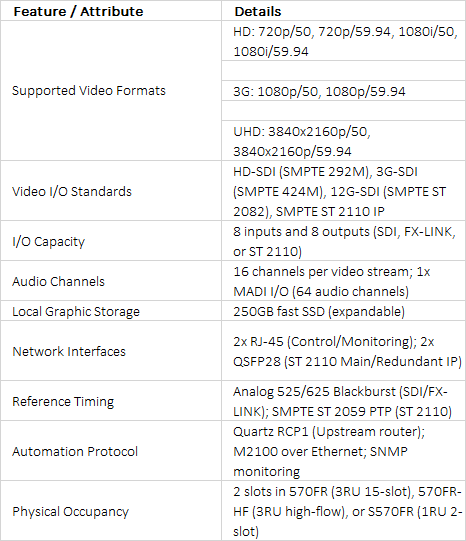

Technical Specifications +

technical specifications
