Evertz 570ENC-HW-X19-NSH Professional Contribution Encoder | H.264 / MPEG-2 / J2K

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Codec Encoding: Supports J2K, H.264 up to Hi422P@4.1, and MPEG-2.
Hybrid Input Support: Handles 3G/HD/SD-SDI and uncompressed IP via SMPTE ST 2110/ST 2022-6.
High-Bitrate Output: Supports J2K 4:2:2 10-bit up to 200 Mbps and H.264 4:2:2 10-bit up to 80 Mbps.
Advanced Audio Processing: Supports up to 8 PIDs across 16 embedded channels with AAC, MPEG, and Dolby.
VANC & Ancillary Data: Passes closed captions, Teletext, AFD/WSS, Timecode, and SCTE 104/35 data.
Flexible Connectivity: Provides dual 10GbE SFP ports, dual DVB-ASI outputs, and RJ-45 management.
Open IP Control: Supports HTTP web server, SNMP monitoring, and AMWA NMOS IS-04/IS-05.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Fidelity Broadcast Contribution

The Evertz 570ENC-HW-X19-NSH is a professional-grade contribution encoder built for demanding broadcast transmissions, news contribution, and live sports backhaul. Combining high visual fidelity with sub-frame latency and efficient bandwidth management, the encoder processes uncompressed baseband or IP signals into high-bitrate 4:2:2 10-bit transport streams using JPEG 2000, H.264, or MPEG-2 compression.

Hybrid Baseband and IP Architecture

Designed to bridge legacy SDI workflows with modern IP infrastructures, the 570ENC-HW-X19-NSH features two 3G/HD/SD-SDI inputs alongside uncompressed SMPTE ST 2110 and ST 2022-6 IP network interfaces over 10GbE SFP connections. Output options include dual DVB-ASI BNC connectors and IP transport streams for distribution across managed fiber links or private broadcast networks.

Comprehensive Audio and Ancillary Data Handling

Equipped to handle complex multi-language broadcasts, the module processes up to 16 channels of embedded audio across 8 PIDs with compression options including MPEG-1 Layer 2, AAC, Dolby Digital (AC3), and Dolby E pass-through. Complete VANC data preservation ensures essential broadcast metadata—such as closed captions, AFD/WSS, timecode, and SCTE 104-to-35 ad insertion cues—is seamlessly maintained from input to output stream.

Modular 3RU Design and Network Management

Occupying two slots in the industry-standard Evertz 570FR 3RU chassis, the module features a field-upgradable licensing architecture that allows facilities to expand functionality on demand. System administrators can configure and monitor the device via its built-in HTTP web server, SNMP interfaces, or central orchestration platforms like Evertz VistaLINK and Compression Systems Manager (CSM).

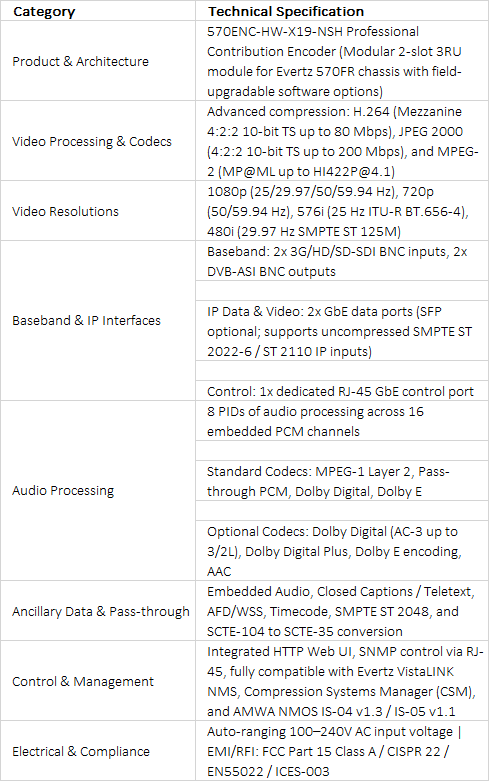

Technical Specifications +

technical specifications
