Evertz

Evertz 570REM-RX8-10GE 8-Channel JPEG 2000 IP Video Decoder Card

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density JPEG 2000 Decoding: Processes up to 8x 3G/HD/SD-SDI or 2x 4K/UHD channels.
10GbE Network Connectivity: Provides 4x SFP/SFP+ interfaces with IGMP v2/v3 and SSM multicast support.
Dual SDI Output Matrix: Provides 2x decoded SDI outputs per JPEG 2000 channel, with 16x DIN connectors.
Multi-Path Packet Merge: Provides network error resilience and 100% QoS.
Integrated Frame Synchronization: Locks each output channel to facility genlock.
VSF TR-01 v2 Compliance: Supports interoperability across JPEG 2000 over IP contribution links.
Ancillary Data Support: Handles 4 audio groups (16 channels) and full VANC de-embedding/embedding.
Modular Design: Dual-slot card compatible with Evertz 570FR 1RU/3RU chassis.
Flexible Management: Supports HTTP web interface, Ethernet, SNMP, VistaLINK PRO, and MAGNUM Unified Control.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density JPEG 2000 IP De-Encapsulation

The Evertz 570REM-RX8-10GE is a modular IP receiver and JPEG 2000 decoder card designed for high-bitrate live contribution networks and inter-facility media links. By delivering up to 8 channels of 3G/HD/SD-SDI decoding or 2 channels of 4K/UHD decoding in a dual-slot footprint, the card optimizes chassis density for broadcast centers, mobile production trucks, and network edge gateways.

Broadcast Video Quality & Network Resilience

Engineered for uncompromised live video transport, the 570REM-RX8-10GE adheres strictly to the VSF TR-01 v2 specification. To mitigate packet loss over IP networks, the module incorporates Evertz' patent-pending multi-path, multi-flow packet merge algorithm. This base-network error resilience technique merges redundant stream paths in real time to provide 100% Quality of Service (QoS) hitless redundancy.

Physical SDI Distribution and Frame Sync

Every JPEG 2000 decode channel features mirrored dual SDI outputs (16x DIN connectors total), eliminating the need for external distribution amplifiers downstream. Built-in frame synchronizers lock each decoded video stream to the local reference signal, ensuring seamless timing alignment across 3840x2160p (Quad Division / 2sI), 1080p, 1080i, 720p, and SD standards. The card preserves all embedded audio (4 groups) and ancillary VANC metadata.

System Integration and Network Control

Occupying two slots in Evertz 570FR series 1RU and 3RU chassis enclosures, the 570REM-RX8-10GE features four 10GbE SFP+ cages for high-bandwidth streaming. Operators can easily monitor, configure, and automate decoding workflows using the onboard web GUI, central frame controller, Evertz VistaLINK PRO, or MAGNUM Unified Control over SNMP.

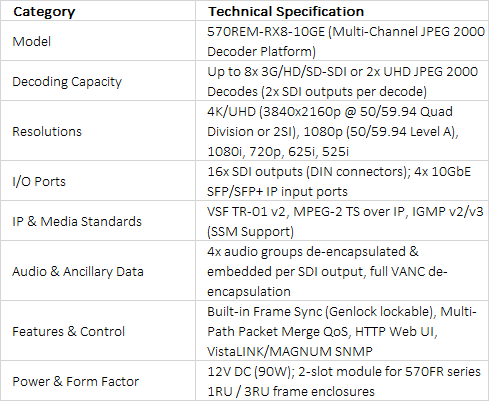

Technical Specifications +

technical specifications
