Evertz 5782DEC-H264HD-10GE2 Professional Broadcast Decoder | H.264 / MPEG-2 / J2K

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Codec Decoding: Supports H.264/AVC, MPEG-2, and optional JPEG 2000 up to 4:2:2 10-bit.
10GbE IP Outputs: Provides dual 10GbE SFP ports with ST 2110/ST 2022-6 and ST 2022-7 redundancy.
DVB-ASI & SDI Outputs: Supports dual DVB-ASI inputs and 3G/HD/SD-SDI video outputs.
Multi-Channel Audio: Handles up to 8 PIDs and 16 channels with AAC-LC, MPEG-1 Layer 2, Dolby AC3, and Dolby E pass-through.
HANC & VANC Reconstruction: Supports Closed Captions, Teletext, AFD/WSS, Timecode, and SCTE 35/104 conversion.
Flexible Management: Provides RJ-45 web control, SNMP via VistaLINK, and AMWA NMOS support.
Modular Design: Single-slot module compatible with Evertz 7700, 7800, and 570 series 3RU frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Fidelity Multi-Codec Decoding

The Evertz 5782DEC-H264HD-10GE2 is a professional, broadcast-grade decoder engineered for primary distribution, live contribution, and high-density monitoring. Accepting transport streams over dual IP data interfaces or DVB-ASI inputs, the module decodes MPEG-2, H.264 (up to High 422 Profile @ Level 4.1), and optional JPEG 2000 up to 4:2:2 10-bit resolution with ultra-low latency and broadcast-grade fidelity.

Direct Uncompressed IP and Baseband Output

Designed as an IP edge transition tool, the 5782DEC-H264HD-10GE2 outputs decoded signals simultaneously to traditional baseband SDI outputs and uncompressed IP networks via dual 10GbE SFP ports. Supporting SMPTE ST 2110 and ST 2022-6 standards, as well as SMPTE ST 2022-7 hitless redundancy, the card acts as a direct gateway bridging compressed contribution streams into uncompressed IP studio infrastructures.

Advanced Ancillary Data and Audio Processing

The decoder delivers comprehensive HANC and VANC metadata reconstruction for both SDI baseband and uncompressed IP outputs. It processes up to 16 channels of embedded audio across 8 PIDs, supporting pass-through for PCM, Dolby Digital, and Dolby E streams alongside optional AAC-LC decoding and SCTE 35-to-104 ad insertion marker conversion.

Open IP Control and Frame Integration

Occupying a single slot in Evertz 7700FR, 7800FR, and 570FR chassis lineups, the 5782DEC-H264HD-10GE2 offers seamless network integration. It supports open AMWA NMOS IS-04, IS-05, IS-07, IS-08, and IS-09 specifications alongside SNMP monitoring through Evertz VistaLINK and direct web configuration via an onboard Ethernet interface.

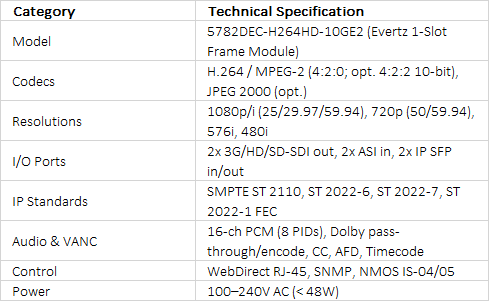

Technical Specifications +

technical specifications
