Evertz 5782DEC-H264HD-10GE2 Professional H.264 & MPEG-2 Decoder Platform

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format Decoding: Supports H.264/AVC, MPEG-2 up to 4:2:2 10-bit, and optional JPEG2000.
Dual IP Outputs: Provides 10GbE SFP outputs supporting SMPTE ST 2022-6, ST 2110, ST 2022-7 redundancy, and NMOS IS-04/IS-05.
SDI & ASI Connectivity: Includes 2x ASI inputs, 2x 3G/HD/SD-SDI I/O, plus RJ-45/SFP Ethernet interfaces.
ANC Data Preservation: Reconstructs VANC/HANC data including CEA-608/708, Teletext, AFD/WSS, Timecode, and optional SCTE 35-to-104 conversion.
Multi-Channel Audio: Supports up to 8 audio PIDs/16 embedded PCM channels with MPEG-1 Layer 2, Dolby AC-3, Dolby E pass-through, and optional AAC-LC.
HD-to-SD Down-Conversion: Optional HDC converts HD-SDI to SD-SDI with fixed scaling or AFD-based aspect ratio adjustment.
VistaLINK SNMP Management: Enables remote configuration and monitoring via VistaLINK Pro or web browser.
Modular Frame Compatibility: Single-slot card for Evertz 7700, 7800, and 570 series frames with optional frame sync.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Baseband & IP Decoding

The Evertz 5782DEC-H264HD-10GE2 is a single-slot professional decoder card designed for high-density broadcast monitoring, contribution decoding, and IP media translation. Capable of handling high-bitrate H.264/AVC and MPEG-2 compressed streams up to 80 Mb/s (and optional JPEG2000 up to 300 Mb/s), this module outputs both uncompressed 10GbE IP streams and standard baseband 3G/HD/SD-SDI video.

Seamless SMPTE ST 2110 & ST 2022 IP Workflows

Engineered to support the broadcast industry's migration to IP infrastructures, the 5782DEC-H264HD-10GE2 features dual 10GbE SFP ports delivering SMPTE ST 2022-6 and SMPTE ST 2110 uncompressed video/audio transportation. With optional SMPTE ST 2022-7 hitless redundancy and full AMWA NMOS (IS-04/IS-05) compliance, the card integrates smoothly into modern software-defined IP broadcast networks.

Flexible Audio Processing & Metadata Handling

The decoder offers extensive audio and ancillary data management. It processes up to 16 channels of embedded audio with pass-through support for PCM, Dolby Digital, and Dolby E. Additionally, the unit ensures full compliance by preserving VANC/HANC metadata across both baseband SDI and IP outputs.

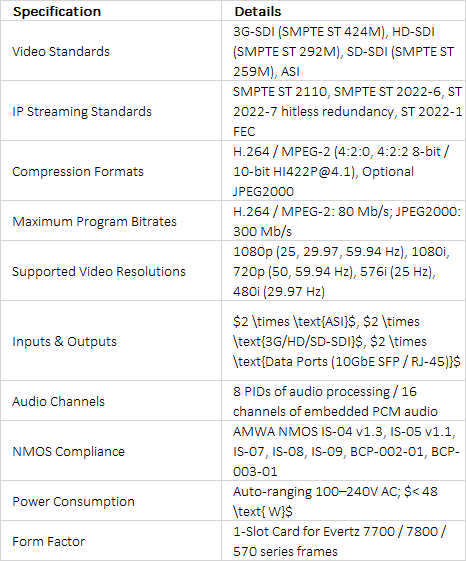

Technical Specifications +

technical specifications
