Evertz 5782ITXE-H264P60-IPTV Single-Channel 3G/HD/SD H.264/J2K/MPEG-2 to IPTV Transcoder

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format Decoding: Supports JPEG2000, H.264/AVC, and MPEG-2 streams up to 4:2:2 10-bit.
IPTV Transcoding: Converts high-bitrate feeds to H.264 4:2:0 8-bit IPTV streams at 10–20Mbps.
Dual Gigabit IP Ports: Provides 2x 1GbE SFP optical/copper interfaces for video ingest, streaming, and network redundancy.
Multi-PID Audio Support: Decodes up to 4 audio PIDs with MPEG-1 Layer 2, optional AAC-LC/Dolby Digital AC-3, plus PCM/Dolby pass-through.
3G-SDI Support: Handles 3G-SDI, HD-SDI, and SD-SDI formats up to 1080p59.94/60.
Flexible Management: Supports card-edge RJ-45, 570FC frame controller, and VistaLINK SNMP management.
High-Density Form Factor: Single-slot card compatible with Evertz 570, 7700, and 7800 series frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact High-Quality IPTV Transcoding

The Evertz 5782ITXE-H264P60-IPTV is a single-channel, multi-format IPTV transcoder module engineered for broadcast monitoring, multi-viewer feeding, and IPTV headend distribution. Designed to bridge contribution links and localized monitoring networks, it ingests complex incoming JPEG2000, H.264, or MPEG-2 transport streams and transcodes them into bandwidth-efficient H.264 IPTV streams.

Comprehensive Codec & Audio Handling

Capable of decoding demanding 4:2:2 10-bit JPEG2000 and H.264 sources, the 5782ITXE-H264P60-IPTV simplifies complex compression environments. On the output side, it generates robust 8-bit 4:2:0 H.264 streams ranging from 10 to 20 Mbps. The unit manages up to 4 audio PIDs, supporting native pass-through of PCM and Dolby Digital audio alongside encoding and decoding for standard broadcast audio formats.

Flexible Dual IP Connectivity & Frame Integration

Equipped with dual 1GbE SFP slots, the module seamlessly integrates into modern IP-based broadcast infrastructures. Occupying just a single card slot in Evertz 570 series and 7700/7800 series multiframes, it offers high-density deployment with low power consumption (< 48W) and full hot-swappable serviceability.

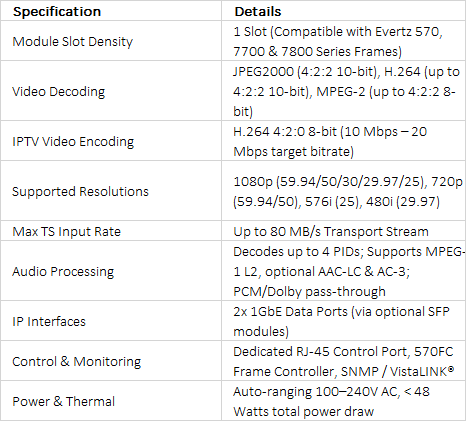

Technical Specifications +

technical specifications
