Evertz 7700ACO2 Dual SD-SDI Smart Automatic Changeover Processor with IntelliGain® Loudness Control

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual ACO Paths: Provides two independent automatic protection switching channels for primary and backup SD-SDI streams.
Intelligent Auto-Switching: Monitors video/audio health with configurable signal-loss, freeze, and black detection.
Hardware Bypass Protection: Provides passive input loop-throughs and mechanical program-output bypass during power loss.
Video & Audio Processing: Includes proc amp controls for gain, pedestal, and audio parameters, plus per-channel Trouble Slide insertion.
Optional IntelliGain: Provides real-time loudness normalization to user-defined targets while preserving dynamic range.
VistaLINK SNMP Control: Enables remote monitoring, configuration, alarm triggers, and VUE panel integration.
7800 Series Compatibility: Dual-slot module supports 7800FR 3RU/15-slot and portable 350FR 3RU/7-slot frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Mission-Critical Automatic Protection Switching

The Evertz 7700ACO2 is an enterprise-grade smart automatic changeover (ACO) processor designed for broadcast master control, satellite uplink centers, and continuous transmission playout workflows. Featuring dual independent processing channels on a single module, the 7700ACO2 provides automatic failover protection for two distinct SD-SDI signal chains, ensuring uninterrupted delivery of primary on-air programming.

Comprehensive Video/Audio Auditing & Failover Logic

Driven by Evertz' real-time signal analysis engine, the 7700ACO2 constantly audits embedded audio levels alongside video integrity (detecting black screens, frozen video, or carrier loss). If an upstream failure occurs, the unit instantly switches to the backup feed based on user-programmed threshold rules, or displays a built-in static "Trouble Slide" to maintain signal continuity. Mechanical bypass relays on the primary output guarantee feed pass-through even during total frame power loss.

Onboard IntelliGain® Audio Normalization

To resolve jarring volume discrepancies between regular program material and commercial interstitials, the card can be optioned with Evertz' patented IntelliGain® Audio and Loudness Processor. The module de-embeds incoming digital audio, applies dynamic range gain regulation to match target LKFS/LUFS parameters, and re-embeds the corrected audio into the output feed with artifact-free transitions.

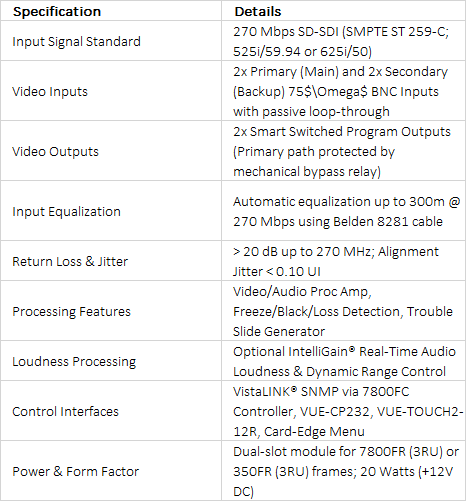

Technical Specifications +

technical specifications
