Evertz 7700ACO2-HD Dual HD/SD-SDI Smart Automatic Changeover Processor with IntelliGain® Loudness Control

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Channel ACO: Provides two independent protection switching paths for separate HD-SDI or SD-SDI signal chains.
Multi-Format SDI: Auto-detects 1.5Gbps HD-SDI (ST 292-1) and 270Mbps SD-SDI (ST 259-C).
SoftSwitch™ Transitions: Delivers glitch-free video switching and popless embedded audio transitions during failover.
Intelligent Signal Monitoring: Detects configurable loss-of-signal, freeze frame, and black conditions for automatic switching.
Bypass & Loop-Through Protection: Provides passive BNC loop-throughs and mechanical program-output bypass during power loss.
Optional IntelliGain: Provides real-time loudness normalization between programs and commercials while preserving dynamic range.
VistaLINK SNMP Management: Enables remote monitoring, configuration, and VUE-CP232/VUE-TOUCH2-12R control via 7800FC.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Master Control Signal Protection & Seamless Switching

The Evertz 7700ACO2-HD is an enterprise-grade smart automatic changeover (ACO) processor designed for mission-critical master control, multi-channel playout centers, and satellite broadcast facilities. Capable of handling both 1.5 Gbps HD-SDI and 270 Mbps SD-SDI formats, this card houses two separate processing channels in a single dual-slot module. It offers automatic switching between primary and backup video feeds to safeguard on-air programming against upstream equipment failures.

Intelligent Auditing & SoftSwitch™ Glitch-Free Transitions

Equipped with Evertz' advanced signal analysis engine, the 7700ACO2-HD actively monitors incoming video and embedded audio parameters. Users can define custom failure triggers based on loss of signal, frozen video frames, or audio silence. When a fault is detected, the unit executes an immediate failover using integrated SoftSwitch™ technology, ensuring clean video switching and popless audio transitions. Each channel also features a built-in static "Trouble Slide" generator to maintain a broadcast output if both primary and backup sources fail.

Onboard Proc Amp & IntelliGain® Loudness Regulation

In addition to built-in video and audio Proc Amp controls (gain, pedestal, and channel routing), the 7700ACO2-HD can be optioned with Evertz' patented IntelliGain® Audio and Loudness Processor. IntelliGain® internally de-embeds audio, calculates perceived loudness, and automatically adjusts levels to match target LUFS/LKFS broadcast standards—eliminating jarring volume spikes during commercial breaks without introducing audio artifacts.

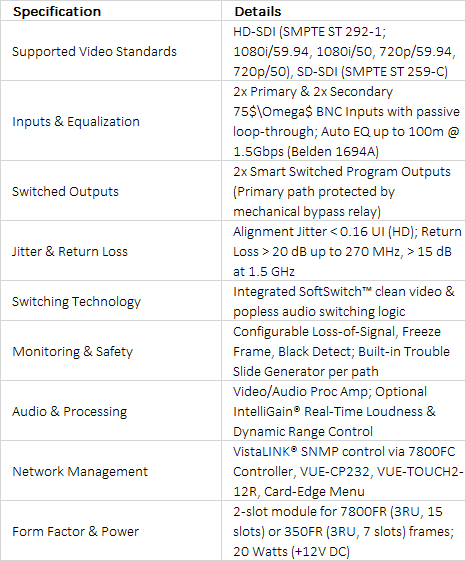

Technical Specifications +

technical specifications
