Evertz 7700ADA-AUD-MM | Dual Analog Audio Distribution Amplifier with Mono Mix

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Channel & Mono Mix Distribution: Provides three distributed outputs per stereo channel (L/R) plus two dedicated mono mix outputs.
Flexible Signal Routing: Supports differential or single-ended inputs with automatic single-ended-to-differential conversion.
Precision Gain Control: Offers 0/+6dB input step gain, ±5dB card-edge fine gain adjustment, and 0/3.5/9.5dB output step gain.
Ultra-Low Distortion & Noise: Delivers 119dB SNR at +6dB gain, 0.001% THD+N from 20Hz–20kHz, and ±0.02dB frequency response.
High Noise Immunity & Isolation: Provides >90dB CMRR at 60Hz and >115dB stereo crosstalk isolation at 1kHz.
Flexible Frame Compatibility: Occupies one slot in Evertz 7800FR, 7801FR, or portable 350FR frames.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Versatile Stereo Distribution & Mono Summing

The Evertz 7700ADA-AUD-MM is a modular balanced analog audio distribution amplifier designed for master control, production suites, and broadcast facility signal distribution. Beyond standard stereo signal distribution, the module integrates an active mono summing circuit to simultaneously feed mono monitoring bridges, emergency broadcast feeds, or secondary audio distribution paths without requiring external summing networks.

Flexible Input Handling & Precision Level Matching

Designed to adapt to varied line-level audio infrastructure, the 7700ADA-AUD-MM features:

Automatic Conversion: Converts single-ended input sources into balanced differential outputs automatically.
Comprehensive Gain Staging: Combines jumper-selected input gain steps (0 dB / +6 dB), card-edge potentiometer fine control (-5 to +5 dB), and output gain steps (0, 3.5, or 9.5 dB) for precise level calibration.
High Headroom & Load Drive: Handles maximum input levels up to +33 dBu (0 dB gain) and drives output signals up to +28 dBu across high-impedance loads (+24 dBm into 600Ω loads).

Modular Frame Integration & Diagnostics

Using 3-pin removable terminal strip connectors for secure audio terminations, the 7700ADA-AUD-MM installs into a single card slot of Evertz 7800FR, 7801FR, or 350FR frames. Onboard status indicators provide real-time diagnostic reporting for module status and local faults.

Technical Specifications +

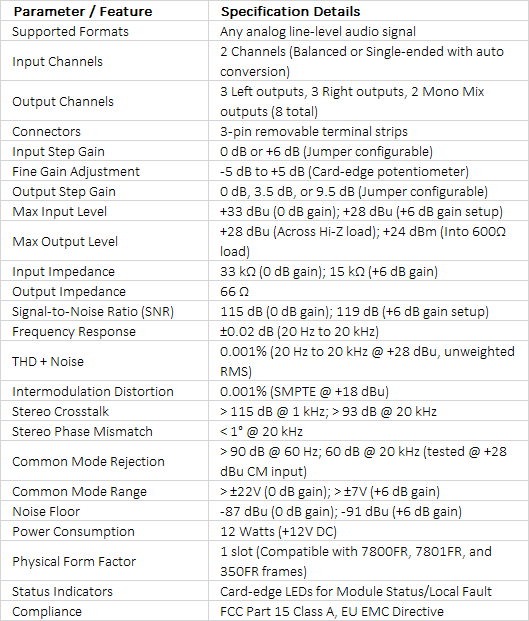

technical specifications
