Evertz 7700ADA6-EQ-L | Analog Video Distribution Amplifier with Equalization & Loop-Thru (1x6)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x6 Distribution with Passive Loop-Thru: Provides one balanced equalized input, one passive loop-through output, and six 75Ω distributed outputs.
Long-Reach Cable Equalization: Compensates for attenuation across 0–300m of Belden 8281 or 1694A coaxial cable.
Wideband Analog Compatibility: Supports 75Ω analog video, timing pulses, and sync signals up to 2V p-p across 30MHz bandwidth.
Selectable Coupling & Gain: Provides jumper-selectable AC/DC coupling with ±5dB gain adjustment for precise signal-level alignment.
High Common Mode Rejection: Delivers >70dB CMRR at 1kHz with a >6V p-p common mode range for improved hum and ground-loop rejection.
Fail-Safe Loop-Thru Operation: Maintains consistent input impedance during chassis power loss to preserve signal flow through the passive loop-through path.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Equalized Distribution with Passive Loop-Through

The Evertz 7700ADA6-EQ-L is a 1x6 analog video distribution amplifier engineered for master control, production switcher feeds, and broadcast facility signal distribution. Designed with an active equalization stage and a passive loop-thru connection, it allows operators to loop incoming analog video or sync signals to downstream equipment while distributing six isolated, cable-equalized outputs to auxiliary paths.

Signal Restoration & Flexible Coupling

Built to preserve signal integrity over long coaxial cable runs:

Cable Equalization: Continuously adjustable equalizer recovers high-frequency losses over cable distances from 0 to 300 meters using Belden 8281 or 1694A coax.
Coupling & Level Control: Includes jumper-selectable AC or DC coupling to accommodate standard video signals or DC-offset pulses, backed by a ±5 dB gain adjustment potentiometer.
Noise Rejection & Fail-Safe Architecture: Balanced input design delivers high Common Mode Rejection (>70 dB at 1 kHz). In the event of frame power failure, the passive loop-thru maintains consistent impedance, preventing signal degradation downstream.

High-Density Modular Deployment

Occupying a single slot, the 7700ADA6-EQ-L integrates into Evertz multi-frame enclosures, including the 3RU 7800FR (up to 15 modules), 1RU 7801FR (up to 4 modules), portable 350FR (up to 7 modules), or standalone single-slot enclosures. Card-edge LEDs provide instant status updates for module health and local fault reporting.

Technical Specifications +

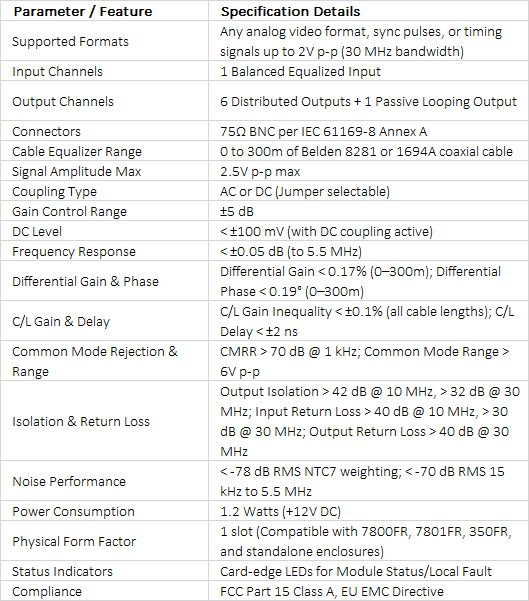

technical specifications
