Evertz 7700ADA7 | Analog Video Distribution Amplifier (1x7)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density 1x7 Distribution: Provides one balanced input to seven isolated 75Ω BNC outputs.
Wideband Analog Compatibility: Supports analog video, subcarrier references, sync, and timing pulses up to 2V p-p across 30MHz bandwidth.
Selectable Input Impedance: Jumper-selectable 75Ω termination or 35kΩ Hi-Z input mode for passive loop-through setups using an external “T” connector.
Selectable Coupling & Gain: Provides jumper-selectable AC/DC coupling with ±5dB onboard gain adjustment for precise signal-level trimming.
High Common Mode Rejection: Delivers >70dB CMRR at 1kHz with a >6V p-p common mode range for improved hum and ground-loop rejection.
Fail-Safe Multi-Frame Integration: Maintains input impedance during card power loss and occupies one slot in Evertz 7800FR, 7801FR, 350FR, or standalone frames.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional High-Density Analog Signal Distribution

The Evertz 7700ADA7 is a general-purpose 1x7 analog distribution amplifier designed for master control, broadcast facilities, and live production environments. Engineered to distribute a full spectrum of analog video signals, subcarrier reference, and timing pulses, it delivers seven clean, isolated outputs from a single balanced input.

Flexible Coupling & Signal Conditioning

Built to preserve analog signal fidelity across complex routing networks:

Impedance & Looping Control: Jumper-selectable 75Ω termination or high-impedance (35kΩ Hi-Z) mode allows operators to loop incoming signals using an external "T" connector without loading down the line.
Coupling & Level Calibration: Supports jumper-selectable AC or DC coupling to accommodate standard video waveforms or DC-offset pulse signals, paired with a ±5 dB gain adjustment trim.
Interference Rejection & Fail-Safe Design: Features a balanced input with high Common Mode Rejection (>70 dB at 1 kHz). In the event of a chassis power loss, the card maintains constant input impedance to prevent signal degradation on passive loops.

Universal Modular Compatibility

The 7700ADA7 installs into a single card slot across Evertz modular enclosures, including the 3RU 7800FR (up to 15 slots), 1RU 7801FR (up to 4 single slots), portable 350FR (7 slots), or standalone single-card desktop enclosures.

Technical Specifications +

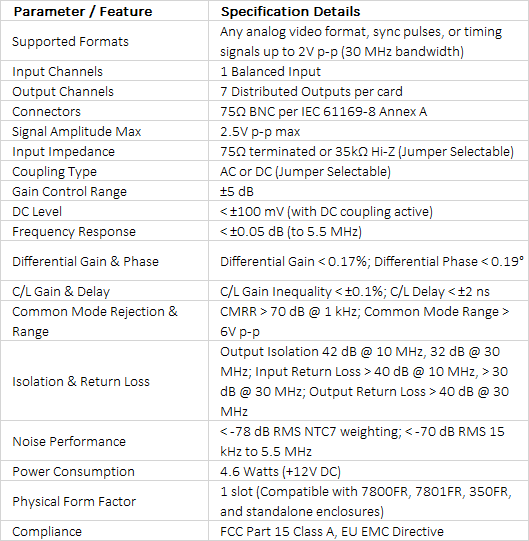

technical specifications
