Evertz 7700DA-DS3 | DS3 Telecom Signal Distribution Amplifier with Auto-Equalization & Reclocking

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

DS3 Signal Distribution: Accepts one B3ZS-encoded AMI DS3 input at 44.736Mb/s and provides four reclocked BNC outputs.
Automatic Cable Equalization: Compensates for high-frequency attenuation over up to 300m of Belden 8281 coaxial cable.
Signal Conditioning & Jitter Attenuation: Reclocks incoming streams and reshapes outputs for G.703 template mask compliance.
Fault Recovery & AIS Generation: Detects Loss of Signal (LOS) and automatically generates an Alarm Indication Signal (all-1s pattern) upon input loss.
Adjustable Output Drive: Provides High/Low output amplitude settings for short-haul and long-distance downstream cable runs.
Isolated & Protected Interfaces: Uses transformer-coupled BNC inputs and outputs with transient protection against ground loops and power surges.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Reliable DS3 Telecom Signal Conditioning and Distribution

The Evertz 7700DA-DS3 is a high-performance distribution amplifier engineered for telecoms, broadcast backhaul, and facility infrastructure carrying DS3 (44.736 Mb/s) serial data signals. By accepting a B3ZS-encoded AMI input and generating four reclocked, wave-shaped outputs, it extends signal reach and ensures reliable transmission across central offices and broadcast facilities.

Comprehensive Signal Integrity & Fault Management

Extended Equalization & Reclocking: Reconstructs degraded incoming signals across up to 300 meters (1,000 feet) of 75Ω coaxial cable. Onboard reclocking and jitter attenuation remove phase noise to maintain downstream timing lock.
Compliant Waveform Shaping: Enforces strict G.703 output pulse templates. Switchable high/low drive levels allow operators to optimize signal power depending on cable distance to the next receiving node.
Automatic AIS Alarm Generation: Integrated Loss of Signal (LOS) detection triggers an operational status alert and generates an all-ones (1s) pattern to keep downstream network monitoring equipment stable during upstream signal interruptions.

Flexible Modular Architecture

Occupying a single slot in standard Evertz enclosures, the 7700DA-DS3 installs cleanly into 3RU 7800FR chassis (up to 15 modules), 1RU 7801FR chassis (up to 4 modules), 3RU 350FR portable chassis (7 modules), or standalone desktop enclosures. Card-edge diagnostics and transformer-isolated I/O deliver long-term protection against ground potential differences and transient surges.

Technical Specifications +

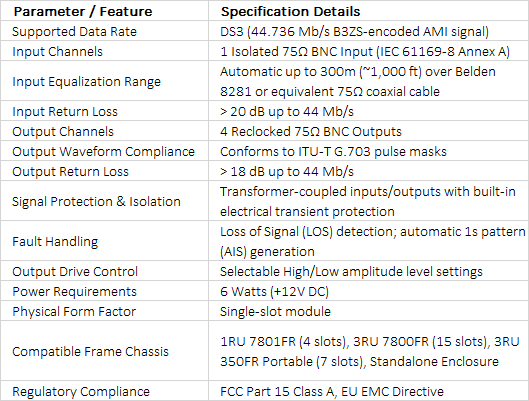

technical specifications
