Evertz 7700DA6-HD-L | HD/SD-SDI Reclocking Distribution Amplifier with Passive Loop-Thru

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Passive Loop-Through: Provides one passive loop-through output for cascading multiple DA cards or external equipment without signal degradation.
Multi-Rate Reclocking: Automatically detects, equalizes, and reclocks 1.5Gb/s HD-SDI (SMPTE ST 292-1), 270Mbps SD-SDI (ST 259M-1), and DVB-ASI across six main outputs.
Selectable Bypass Mode: Supports non-reclocked pass-through for ATSC SMPTE ST 310-1 (19.4Mbps) and secondary SDI bitrates.
Automatic Cable Equalization: Supports coaxial runs up to 20m at 1.5Gb/s using Belden 1694A or equivalent broadcast cable.
VistaLINK® Remote Monitoring: Provides SNMP status reporting, control, and monitoring when installed with a 7800FC Frame Controller.
Flexible Modular Design: Single-slot card compatible with Evertz 7800FR, 7801FR, and 350FR frames, as well as standalone enclosures.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Signal Distribution with Active & Passive Outputs

The Evertz 7700DA6-HD-L is a high-density, multi-rate HD/SD-SDI reclocking distribution amplifier designed for broadcast television facilities, production trucks, and transmission headends. Combining 6 reclocked SDI outputs with a high-integrity passive loop-thru BNC connection, it provides an efficient solution for daisy-chaining multiple distribution amplifiers or feeding critical downstream monitoring hardware without inserting an additional active device into the primary signal path.

Dual-Mode Processing & Format Versatility

Operating in both reclocking and non-reclocking modes, the card adapts to diverse signal environments:

Reclocking Mode: Automatically senses and locks to 1.5 Gbps HD-SDI (SMPTE ST 292-1), 270 Mbps SD-SDI (SMPTE ST 259M-1), and DVB-ASI transport streams, suppressing wideband jitter to under 0.2 UI.
Non-Reclocking Mode: Bypasses internal reclocking circuitry to distribute ATSC SMPTE ST 310-1 signals (19.4 Mbps) or non-standard serial digital signals across the 270 Mbps to 1.5 Gbps range.

Flexible Framing & VistaLINK® Diagnostics

Occupying a single slot, the 7700DA6-HD-L can be deployed across a variety of Evertz enclosure architectures, including 1RU (7801FR), 3RU (7800FR), and portable frames (350FR). Comprehensive card-edge LEDs provide instant visual status for module health and input signal presence. When installed in a 7800FR chassis equipped with a 7800FC Frame Controller, the module supports full SNMP configuration, alarm tallying, and remote health checks via Evertz VistaLINK® NMS and VUE control panels.

Technical Specifications +

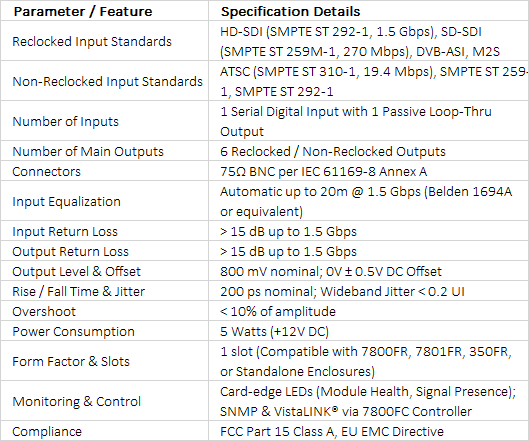

technical specifications
