Evertz 7700DA6-L | SD-SDI Reclocking Distribution Amplifier with Passive Loop-Thru

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Passive Loop-Through: Provides one passive loop-through output for cascading DA cards or external equipment without signal degradation.
Multi-Rate SD-SDI Distribution: Automatically equalizes and reclocks 143–540Mbps SD-SDI rates, supporting SMPTE ST 259 A/B/C/D, DVB-ASI, and M2S.
SMPTE 310M Bypass: Jumper-selectable non-reclocked pass-through supports ATSC SMPTE 310M at 19.4Mbps.
Extended Cable Equalization: Supports coaxial runs up to 250m at 270Mbps using Belden 8281 or equivalent broadcast cable.
Isolated Output Drivers: Prevents cross-channel loading across all six reclocked outputs, eliminating the need to terminate unused rear BNC connectors.
Flexible Modular Integration: Occupies one slot in Evertz 7800FR, 7801FR, or 350FR frames and supports standalone operation with VistaLINK® SNMP control via a 7800FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Reliable SD-SDI Signal Distribution with Passive Loop

The Evertz 7700DA6-L is a high-density, cost-effective 1x6 SD-SDI reclocking distribution amplifier engineered for broadcast television stations, cable headends, and legacy digital video infrastructures. Equipped with 6 reclocked SD outputs and a high-integrity passive loop-thru output, it enables easy daisy-chaining of multiple cards or direct feeds to monitoring equipment without adding an active component to the main signal link.

Versatile Standard Definition Format Support

Designed to handle a wide range of standard definition digital streams (143 Mbps to 540 Mbps), the 7700DA6-L supports SMPTE ST 259 (SDI), DVB-ASI transport streams, and M2S signals. For ATSC transmission applications, the module includes a rate-select jumper that switches the reclocking circuit off to cleanly pass 19.4 Mbps SMPTE 310M signals.

Output Isolation, Framing & VistaLINK® Diagnostics

Each output driver is fully isolated to maintain signal integrity and return loss specifications (> 15 dB up to 540 Mbps) even if output BNC ports are left unterminated. Front card-edge LEDs provide instant visual confirmation of signal presence and overall module health. When deployed in a 7800FR frame containing a 7800FC Frame Controller, full remote SNMP monitoring, status reporting, and control are accessible through Evertz VistaLINK® and VUE control panels.

Technical Specifications +

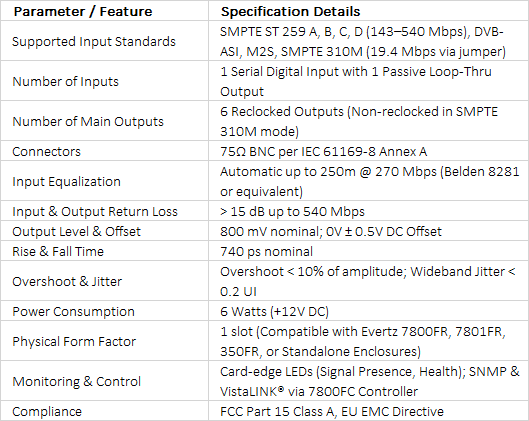

technical specifications
