Evertz 7700DA7-3G | 3G/HD/SD-SDI Reclocking Distribution Amplifier (7 Outputs)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Rate Reclocking: Automatically detects, equalizes, and reclocks 3G-SDI (SMPTE ST 424, 3Gb/s), HD-SDI (ST 292-1, 1.5Gb/s), and SD-SDI (ST 259-1, 270Mbps).
1x7 Isolated Distribution: Provides seven independent outputs with isolated drivers to prevent cross-channel loading and support unterminated outputs.
Selectable Bypass Mode: Supports non-reclocked pass-through for SMPTE ST 344-1 (540Mbps), SD-SDI (360/143Mbps), SMPTE ST 310-1 (19.4Mbps), and DVB-ASI.
Long-Reach Cable Equalization: Supports coaxial runs up to 80m at 3Gb/s, 150m at 1.5Gb/s, and 350m at 270Mbps using Belden 1694A or equivalent.
Front Hot-Swappable Design: Enables module replacement from the front without disconnecting rear BNC cabling.
Input Loss Tally: Provides a Frame Status Bus tally output when the input signal is lost.
VistaLINK® Management: Supports remote monitoring and control through VistaLINK® and VUE control panels with a 7800FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density 3G/HD/SD-SDI Signal Distribution

The Evertz 7700DA7-3G is a high-performance 1x7 distribution amplifier designed for broadcast studios, live production trucks, and transmission headends requiring multi-rate serial digital video signal distribution. Reclocking incoming 3G-SDI, HD-SDI, and SD-SDI inputs, it delivers seven clean, jitter-suppressed outputs across a high-density 1-slot form factor.

Versatile Dual-Mode Operation & Long-Distance Equalization

Operating in dual processing modes, the card provides exceptional flexibility across legacy and modern broadcast standards:

Reclocking Mode: Reclocks 3 Gbps, 1.5 Gbps, and 270 Mbps signals with low wideband jitter (< 0.2 UI HD, < 0.3 UI 3G).
Non-Reclocking Mode: Remotely configurable pass-through for DVB-ASI, ATSC SMPTE ST 310-1 (19.4 Mbps), and secondary SDI bitrates.

The adaptive input circuit provides robust equalization to restore weak signals over long coaxial runs, achieving up to 80m at 3 Gbps, 150m at 1.5 Gbps, and 350m at 270 Mbps.

Maintenance & Modular VistaLINK® Integration

Engineered for maximum uptime, the 7700DA7-3G is fully hot-swappable from the front frame without disturbing rear BNC cabling. Diagnostic card-edge LEDs display signal rate detection, control mode status, and overall module health. When deployed in Evertz 7800FR (3RU), 7801FR (1RU), 350FR (3RU portable), or standalone enclosures paired with a 7800FC Frame Controller, it supports complete SNMP remote management and alarm reporting via VistaLINK®.

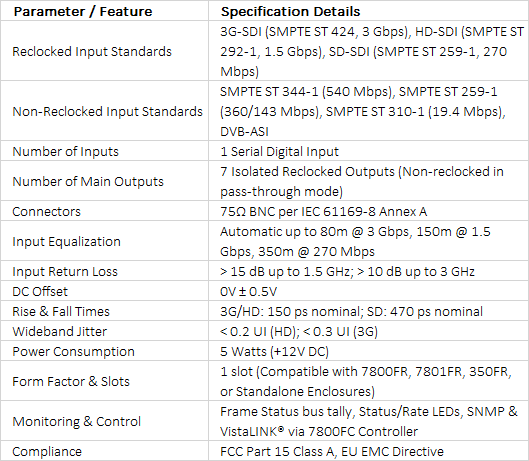

Technical Specifications +

technical specifications
