Evertz 7700DA7-HD | HD/SD-SDI Reclocking Distribution Amplifier (7 Outputs)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x7 HD/SD Distribution: Provides seven reclocked BNC outputs for high-fanout 1.5Gb/s HD-SDI and 270Mbps SD-SDI distribution.
Multi-Rate Reclocking: Automatically detects, equalizes, and reclocks SMPTE ST 292-1 (1.5Gb/s), ST 259M-1 (270Mbps), and DVB-ASI signals.
Selectable Bypass Mode: Supports non-reclocked pass-through for ATSC SMPTE ST 310-1 (19.4Mbps) and un-reclocked ST 259-1/292-1 signals.
Automatic Cable Equalization: Supports coaxial runs up to 100m at 1.5Gb/s using Belden 1694A or equivalent broadcast cable.
Optional Bypass Relay Protection: Supports the +BPRP backplate option for fail-safe signal routing during power loss.
Flexible 7800 Series Integration: Occupies one slot in Evertz 7800FR 3RU or 7801FR 1RU frames.
VistaLINK® SNMP Monitoring: Supports centralized monitoring and control via a 7800FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density HD/SD-SDI Signal Distribution

The Evertz 7700DA7-HD is a high-performance 1x7 HD/SD-SDI reclocking distribution amplifier engineered for broadcast facilities, live production trucks, and master control environments. Designed to process both high-definition and standard-definition video signals, it delivers seven reclocked BNC outputs from a single auto-equalized input in a space-saving 1-slot form factor.

Dual Processing Modes & Fail-Safe Protection

The module operates across flexible processing modes to handle a variety of broadcast standards:

Reclocking Mode: Automatically detects and reclocks 1.5 Gbps HD-SDI (SMPTE ST 292-1), 270 Mbps SD-SDI (SMPTE ST 259M-1), and DVB-ASI streams while suppressing wideband jitter (< 0.2 UI).
Non-Reclocking Mode: Bypasses internal reclocking to support ATSC SMPTE ST 310-1 (19.4 Mbps) transport streams or non-standard bitrates.

For mission-critical signal chains, the card can be outfitted with the optional +BPRP bypass relay backplate to guarantee uninterrupted signal throughput even in the event of frame power loss.

Output Isolation & VistaLINK® Management

All seven output drivers are fully isolated to eliminate cross-channel loading effects, allowing unused outputs to remain unterminated without signal degradation. Card-edge diagnostic LEDs provide immediate visual status for module health and input signal presence. When installed in a 7800FR or 7801FR frame with a 7800FC Frame Controller, the 7700DA7-HD integrates into Evertz VistaLINK® NMS and VUE control panels for complete SNMP remote monitoring and alarm reporting.

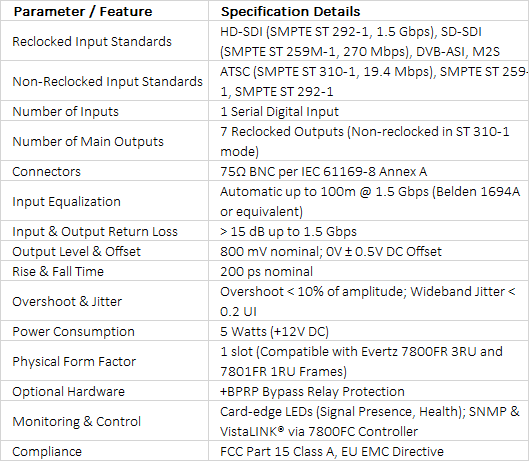

Technical Specifications +
