Evertz 7700DA7 | SD-SDI & DVB-ASI Reclocking Distribution Amplifier (7 Outputs)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x7 SDI Distribution: Provides seven isolated BNC outputs for standard-definition serial digital video and transport stream signals.
Multi-Rate SD-SDI Support: Automatically equalizes and reclocks 143–540Mbps rates, including SMPTE ST 259 A/B/C/D, DVB-ASI, and M2S.
SMPTE 310M Bypass: Jumper-selectable non-reclocked pass-through supports 19.4Mbps ATSC SMPTE 310M signals.
Extended Cable Equalization: Supports coaxial runs up to 300m at 270Mbps and 210m at 540Mbps using Belden 8281 cable.
Isolated Output Drivers: Prevents cross-channel loading, eliminating the need to terminate unused rear BNC connectors.
Optional Bypass Relay Protection: Supports the +BPRP option for hardware fail-safe signal bypass in critical transmission paths.
Flexible Modular Integration: Single-slot module compatible with Evertz 7800FR, 7801FR, 350FR, and standalone frames with VistaLINK® SNMP control via a 7800FC Frame Controller.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Fanout SD-SDI Signal Distribution

The Evertz 7700DA7 is a high-density, multi-rate SD-SDI reclocking distribution amplifier engineered for broadcast television facilities, master control rooms, and transmission systems. Providing seven reclocked outputs from a single input, it delivers reliable high-fanout distribution for standard definition serial digital signals ranging from 143 Mbps to 540 Mbps.

Broad Format Support & Bypass Mode

Designed for versatile signal handling, the card supports SMPTE ST 259 (SD-SDI), DVB-ASI transport streams, and M2S formats. For ATSC broadcast infrastructures carrying compressed streams, an onboard rate-select jumper disables internal reclocking to cleanly pass 19.4 Mbps SMPTE 310M signals without signal distortion.

Isolation, Modular Framing & VistaLINK® Diagnostics

All seven output drivers are fully isolated to ensure signal integrity and maintain high return loss specifications (> 15 dB up to 540 Mbps) without requiring termination on unused BNC ports. Card-edge diagnostic LEDs offer instant local visibility for signal presence and overall card health. When installed in an Evertz 7800FR chassis with a 7800FC Frame Controller module, the 7700DA7 provides central SNMP remote status monitoring and configuration through Evertz VistaLINK® and VUE control panels.

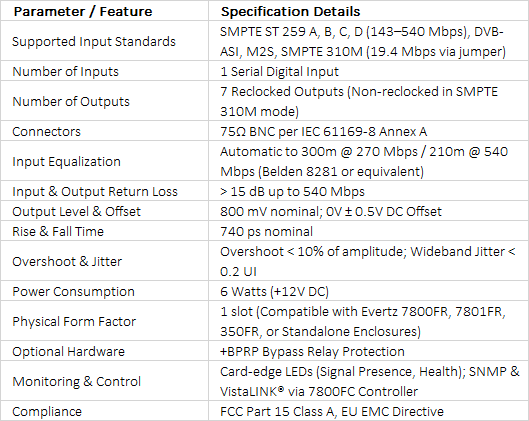

Technical Specifications +

technical specifications
