Evertz 7700GPI General Purpose Interface Module for VistaLINK

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

GPI Alarm Inputs: 20 opto-isolated active-low inputs convert third-party GPO faults into SNMP traps for VistaLINK PRO.
LTC Synchronization: Integrated Linear Time Code input synchronizes alarm logs with facility timecode.
Relay Outputs: Provides 3 dry-contact NC/NO relay outputs for automated control and hardware alerts.
Selectable Supply: Jumper-selectable +5V or +12V internal supply for reliable long cable runs.
Serial COM Port: Jumper-configurable RS-232/RS-422 interface supporting baud rates up to 1 Mbaud.
Rear-Panel Wiring: Uses 2×6 Phoenix terminal blocks for convenient field connections.
LED Diagnostics: Includes module status and 20 individual GPI status indicators.
Frame Compatibility: Fits 7800FR 3RU frames with VistaLINK SNMP control via 7800FC controllers.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Third-Party Alarm Integration for VistaLINK

The Evertz 7700GPI is a modular interface card engineered to bridge legacy or third-party broadcast equipment with the Evertz VistaLINK Network Management System (NMS). By converting standard GPO relay closures into SNMP traps, the 7700GPI allows engineers to monitor non-networked broadcast gear within a central VistaLINK monitoring dashboard.

Timecode Synchronization & Custom Labeling

To streamline incident analysis, the module includes specialized logging and identification features:

LTC Timecode Sync: Accepts a balanced LTC feed to timestamp logged fault alarms against facility time for precise audit records.
Custom Trap Labels: Assign custom text labels to each GPI input that pass through to VistaLINK servers, emails, and pager notifications.
Control Output Relays: 3 configurable relay outputs (NC/NO) allow the VistaLINK ecosystem to trigger external tally lights, buzzers, or backup hardware.

Flexible Interface Architecture

Occupying a single slot in Evertz 7800FR 3RU frames, the 7700GPI features 2x6 Phoenix terminal blocks for quick field wiring. It includes a multi-protocol serial port (RS-232/RS-422) and selectable +5V/+12V GPI driving voltages for long cable paths.

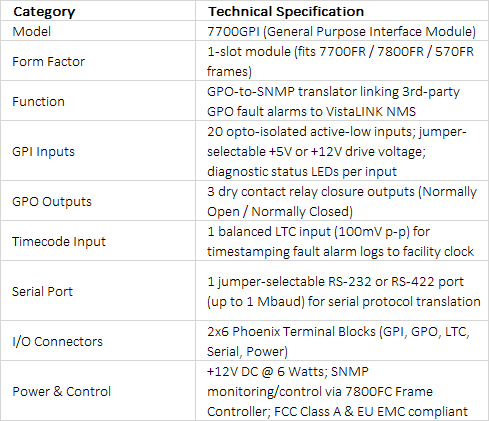

Technical Specifications +

technical specifications
