Evertz 7700PTX Universal Protocol Translator Module

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Universal Protocol Conversion: Bridges third-party routers, switchers, and UMD systems with Evertz VistaLINK and MVP/VIP processors.
Serial Connectivity: Provides 4 bi-directional serial ports configurable as 4× RS-232 or 3× RS-422, supporting up to 1 Mbaud.
Ethernet Translation: Supports bi-directional IP protocol conversion and tally data pass-through.
Integrated SNMP Controller: Enables remote monitoring and management through VistaLINK PRO.
Flexible I/O: Phoenix terminal blocks provide serial communication and GPI/GPO interfacing.
Broad Protocol Support: Compatible with Pro-Bel, Grass Valley, NVISION, Sony, Utah, Jupiter, Quartz, and Ross protocols.
Modular Design: 2-slot card for Evertz 7800FR 3RU frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

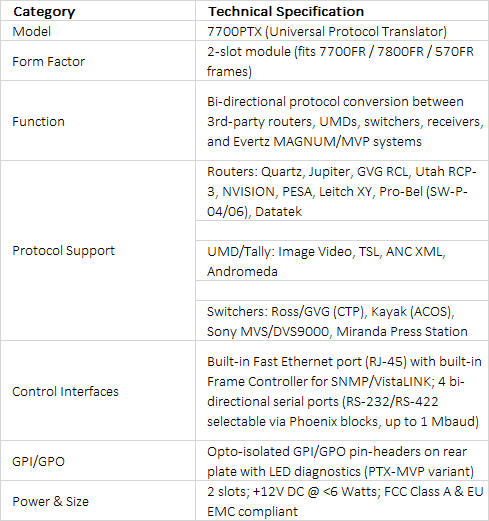

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Cross-Platform Protocol Translation

The Evertz 7700PTX Universal Protocol Translator acts as an interface bridge between third-party broadcast control hardware and Evertz MVP, VIP, and VistaLINK software platforms. By translating proprietary control data into native Evertz protocols, the 7700PTX enables centralized tally/UMD displays, router control, and automated signal tracking across multi-vendor facilities.

Multi-Port Serial & Ethernet Communication

The 7700PTX provides bi-directional data translation via physical serial connections or local IP networks:

Serial & IP Integration: Features 4 configurable serial ports alongside an Ethernet control port to simultaneously exchange communication between routers, production switchers, and display controllers.
Built-In Frame Controller: Includes internal SNMP frame controller capabilities for real-time diagnostic reporting to VistaLINK PRO without requiring auxiliary cards.

Extensive Protocol Compatibility

Available with specialized firmware profiles to interface with leading broadcast vendors:

Routers: Grass Valley (RCL), NVISION (NV9000), Pro-Bel (SW-P-08/06), Quartz, Jupiter, Utah Scientific (RCP-3), PESA, Datatek, and Leitch.
Production Switchers: Sony MVS/DVS, Ross (Contribution Tally Protocol), Grass Valley (Kalypso, Zodiac, Kayak).
UMD & Tally Systems: Image Video, TSL, ANC XML stat servers, and Andromeda.
