Evertz 7700TPI Third Party Interface Module for VistaLINK

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

SNMP Translator: Bridges third-party serial, Ethernet, and GPI/O equipment with Evertz VistaLINK PRO NMS.
GPI Inputs: Provides 20 opto-isolated active-low inputs with selectable +5V/+12V driving voltage.
Relay Outputs: Includes 8 dry-contact NC/NO GPO outputs for alerts and state control.
Serial Connectivity: 4 bi-directional ports configurable as RS-232/422/485, supporting up to 115200 bps.
Ethernet Connectivity: Integrated 10/100 Mbps port for IP-based device monitoring and control.
Integrated SNMP Controller: Enables direct network reporting without an additional frame controller.
Rear-Panel I/O: Phoenix terminal blocks provide convenient field connections.
Modular Design: 2-slot card compatible with Evertz 7800FR 3RU frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Unified Third-Party Monitoring & Control

The Evertz 7700TPI is a versatile interface card built to integrate non-native broadcast equipment into the Evertz VistaLINK Network Management System (NMS). By translating serial, Ethernet, and GPI fault conditions into native SNMP traps, the 7700TPI extends facility-wide monitoring to third-party legacy devices.

Comprehensive Hardware Interfacing

The 7700TPI provides three core connection mediums on a single rear assembly:

GPI/GPO Logic: Features 20 opto-isolated GPI inputs for tracking external faults and 8 relay GPO outputs for triggering physical alarms or automated system changes.
Serial Translation: Equipped with 4 configurable RS-232/422/485 serial ports to send control commands and monitor status data up to 115200 bps.
Ethernet Gateway: Includes a 10/100 Ethernet port to bridge IP-enabled devices directly into the VistaLINK ecosystem.

Integrated Standalone Architecture

Occupying two slots in 7800FR 3RU chassis, the module features its own built-in SNMP frame controller, providing independent network communication while offering diagnostic LEDs for quick local troubleshooting.

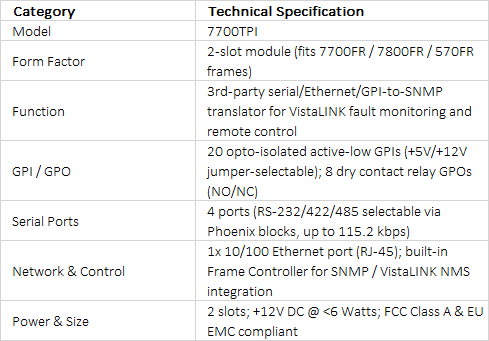

Technical Specifications +

technical specifications
