Evertz 7700VMDA / 7700VMDA-2Q | SD-SDI Video Monitoring Reclocking Distribution Amplifier

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual Digital & Analog Conversion: Converts 270Mb/s SD-SDI inputs to jumper-selectable reclocked SD-SDI outputs or NTSC/PAL composite monitoring outputs.
Flexible Distribution Modes: Available as a single-channel 1x7 DA (7700VMDA) or dual-channel 1x3/single-channel 1x6 DA (7700VMDA-2Q).
Long-Reach Cable Equalization: Compensates for cable losses up to 300m over Belden 8281 coaxial cable at 270Mb/s.
Isolated Output Drivers: Provides independent, fully isolated outputs to prevent cross-channel loading without requiring termination on unused outputs.
Embedded Audio Preservation: Supports SMPTE ST 272-A and preserves embedded audio through reclocked SD-SDI outputs.
VistaLINK® Monitoring: Provides card-edge signal and health diagnostics with full SNMP monitoring via the 7800FC Frame Controller in 7800FR frames.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Integrated SD-SDI Reclocking & Analog Monitoring

The Evertz 7700VMDA series provides cost-effective signal distribution and composite analog encoding for SMPTE ST 259-C (270 MB/s) standard-definition serial digital video. Designed for legacy infrastructure, broadcast monitoring, and facility distribution, each module accepts SD-SDI with embedded audio and delivers selectable reclocked digital or converted analog Composite video outputs.

High-Performance Signal Conditioning & Architecture

Flexible Output Configurations: The 7700VMDA provides up to seven jumper-selectable SDI or composite analog outputs. The 7700VMDA-2Q offers two independent processing channels with three outputs each, configurable as a dual-channel DA or a single 1x6 DA.
Robust Equalization & Reclocking: Rebuilds degraded digital signals with auto-equalization up to 300 meters and low-jitter reclocking (< 0.2 UI), restoring signal integrity across long coaxial runs.
No-Termination Isolated Outputs: Built with isolated output drivers, ensuring that open or un-terminated BNC connections do not degrade neighboring active signal channels.

Modular Frame System & Remote Telemetry

Occupying a single slot, 7700VMDA cards integrate into the standard Evertz frame infrastructure, including the 3RU 7800FR (15-slot), 1RU 7801FR (4-slot), 3RU 350FR portable frame (7-slot), or standalone desktop enclosures. When installed alongside a 7800FC Frame Controller module, operators gain remote SNMP management and system status reporting via VistaLINK® NMS.

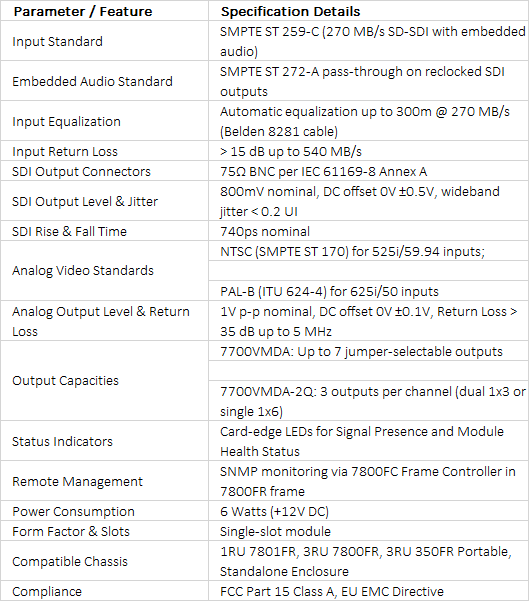

Technical Specifications +

technical specifications
