Evertz 7707AR-8, 7707AR-8U & 7707AR-16 8/16-Channel AES Audio Fiber Receiver Demux Modules

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Audio Transport: Receives up to 16 AES/EBU audio channels over a single fiber link.
Dolby E Support: Fully compliant with Dolby E for transparent multi-channel surround sound transport.
Flexible Model Options: Offers 7707AR-8, 7707AR-8U, and 7707AR-16 configurations with balanced/unbalanced interfaces.
Wideband Optical Reception: Supports 1270–1610nm operation with 1310/1550nm, CWDM, and DWDM fiber optics.
High Optical Sensitivity: Provides sensitivity down to -28dBm for long-distance fiber links.
Independent Sample Rate Detection: Supports per-channel AES rates from 32kHz to 48kHz.
Local Audio Monitoring: Includes card-edge 1/4" headphone output with adjustable volume control.
Remote Management: Supports SNMP and VistaLINK monitoring/control in 7700/7800 series frames.
Hot-Swappable Design: Enables module replacement and servicing without system downtime.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Multi-Channel AES Audio Fiber Demuxing

The Evertz 7707AR series (7707AR-8, 7707AR-8U, and 7707AR-16) are high-density optical receivers designed to demultiplex and output up to 8 or 16 AES/EBU audio channels over a single optical fiber. Supporting both linear PCM audio and compressed Dolby® E bitstreams, these cards provide continuous signal conversion for broadcast master control, live production trucks, and long-haul inter-facility audio transport.

Flexible Audio Interfacing & Monitoring

Available in three distinct physical configurations to match project cabling requirements:

Terminal Block Options (7707AR-8 / 7707AR-16): Utilize removable terminal blocks to interface with 110Ω balanced or 75Ω unbalanced audio lines.
BNC Option (7707AR-8U): Equipped with standard 75Ω BNC connectors for direct coaxial connection to SMPTE ST 276 unbalanced AES audio equipment.

Local diagnostic troubleshooting is simplified via an integrated card-edge 4-digit LED display and a dedicated headphone jack with volume adjustment for real-time channel auditing.

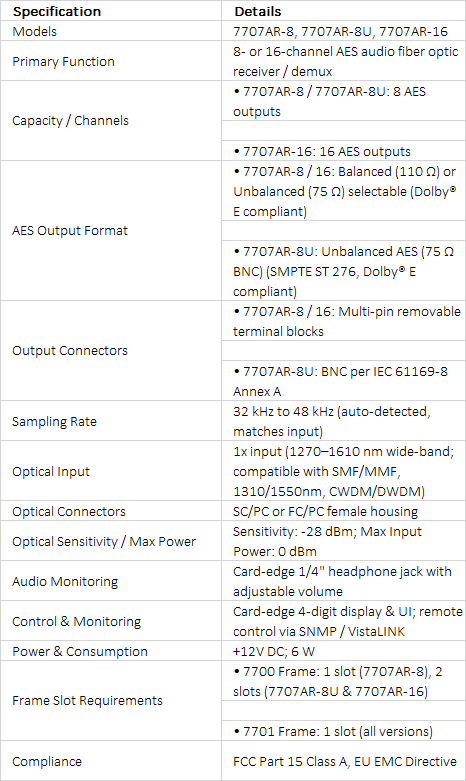

Technical Specifications +

technical specifications
