Evertz 7707AR-A8 & 7707AR-A12 8/12-Channel Analog Audio Fiber Receiver Demux Modules

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Audio: Receives up to 12 analog audio channels over a single optical fiber.
High-Quality Audio: Provides >100dB SNR, <0.003% THD+N, and ±0.1dB response from 20Hz–20kHz.
Per-Channel Control: Supports signal detection and adjustable gain from -10dB to +10dB in 0.5dB steps.
Balanced Audio Connectivity: Uses removable multi-pin terminal block connectors.
Local Monitoring: Includes card-edge headphone output for quick audio auditing and troubleshooting.
Wideband Optical Support: Supports 1270–1610nm operation with 1310/1550nm, CWDM, and DWDM fiber.
High Optical Sensitivity: Provides sensitivity down to -28dBm for reliable long-distance distribution.
Remote Management: Features a 4-digit LED display with SNMP and VistaLINK monitoring/control.
Hot-Swappable Design: Compatible with Evertz 7700FR, 7800FR, and 7701FR frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Analog Audio Demuxing

The Evertz 7707AR-A series (7707AR-A8 and 7707AR-A12) are professional optical-to-analog audio demultiplexers designed to recover 8 or 12 balanced analog audio channels over a single fiber optic cable. Perfect for broadcast facilities, live production trucks, and venue interconnects, these cards convert incoming multiplexed optical streams back to high-grade analog audio with zero signal degradation.

Broadcast-Grade Fidelity & Control

Equipped with multi-pin removable terminal blocks, each module supports maximum output levels of +24 dBu (high impedance) or +23 dBu (600Ω load). Operators can adjust individual channel gain from -10 dB to +10 dB in precise 0.5 dB increments directly from the card-edge UI or remotely over SNMP/VistaLINK. Local signal checks are made effortless thanks to a card-edge 1/4" headphone monitoring output and visual status display.

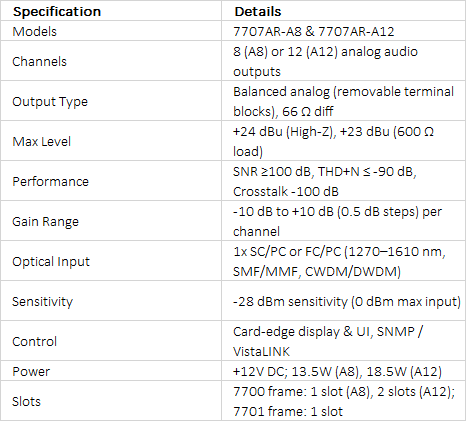

Technical Specifications +

technical specifications
