Evertz 7707BPX 2:1 Optical Protection Switch & Auto Change-Over Module

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Intelligent 2:1 Auto-Changeover: Automatically switches between primary and secondary optical paths when signal loss or low optical power is detected.
Programmable Power Thresholds: User-defined optical power thresholds enable precise automatic switching.
Fast Switching: Switches in under 30ms to minimize frame drops and link interruption.
VistaLINK SNMP Management: Enables remote monitoring and control of module status, active path, power levels, and thresholds.
Wideband Optical Support: Covers 1270–1610nm for SMF, CWDM, and standard optical signals at any bit rate.
GPI/GPO Control: Provides opto-isolated GPI inputs for manual switching and dry-contact GPO relay outputs for external alarms.
Hot-Swappable Module: Front-loading single-slot card compatible with 7801FR, 7800FR, 350FR, and standalone chassis.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Automated Optical Failover & Link Redundancy

The Evertz 7707BPX is a wideband 2:1 optical protection switch engineered to deliver fail-safe redundancy for critical fiber optic transport links. Designed for broadcast infrastructure, master control rooms, satellite earth stations, and long-haul fiber transmission lines, the 7707BPX continuously monitors incoming optical power levels and automatically switches to a backup link if the main fiber path experiences failure or severe signal attenuation.

Flexible Operating Modes & Rapid Switching

Configured with a MAIN and STANDBY input, the 7707BPX maintains line integrity with an ultra-fast switching speed of less than 30 ms. Broadcast engineers can configure the module to perform automatic reversion (switching back to MAIN once the primary signal recovers) or remain locked on STANDBY until manually reset. Switching can also be manually triggered via front-panel controls, opto-isolated GPI inputs, or SNMP network commands.

Comprehensive Monitoring & VistaLINK® Integration

Equipped with a four-digit card-edge display, the 7707BPX provides real-time local readouts of optical power levels and channel status. Full integration with Evertz VistaLINK® SNMP platform allows system administrators to remotely adjust switching thresholds, monitor optical power levels, and receive real-time SNMP traps for failover events across the facility network.

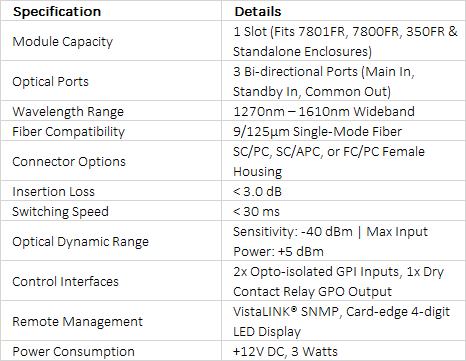

Technical Specifications +

technical specifications
