Evertz 7707GPS-DT-F2 Dual GPS Data Fiber Transmitter Module

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual GPS Transport: Transmits serial data from two Trimble Acutime GPS antennas over fiber for primary and redundant synchronization.
Integrated GPS Power: Supplies +17V DC up to 200mA with built-in current limiting via DB-9 connections.
Flexible Serial Interfaces: Supports 2x bi-directional RS-232 or RS-422 connections up to 115kbps with low latency.
Dual Fiber Links: Provides 2x SC/PC or FC/PC optical ports with 1310nm or 1550nm operation for links up to 2km.
Fiber Compatibility: Supports 9µm single-mode transmission and 62.5µm multi-mode reception with -22dBm sensitivity.
Remote Management: Includes 4-digit card-edge display and SNMP/VistaLINK monitoring in 7800FR/7700FR frames.
Hot-Swappable Design: Features a 1-slot modular form factor for convenient installation and servicing.
Safety & Compliance: Meets Class 1 Laser Safety, FCC Part 15 Class A, and EU EMC requirements.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Long-Distance Dual GPS Synchronization over Fiber

The Evertz 7707GPS-DT-F2 is a specialized fiber optic transmitter card designed to transport timing and positioning data from two Trimble Acutime series GPS Smart Antennas across long distances. By converting serial data streams to optical signals, the module overcomes the strict length limitations and lightning/EMI vulnerabilities of traditional copper cabling—delivering pristine GPS clock synchronization across facility buildings or to remote equipment rooms up to 2 km away.

Redundant GPS Operation & Built-In Antenna Power

Built for critical broadcast timing, master clock, and network synchronization systems, the 7707GPS-DT-F2 supports two independent GPS channels for seamless primary and backup redundancy. The module eliminates external power injectors by providing clean, current-limited +17V DC power directly to both GPS antenna heads over a standard DB-9 connector.

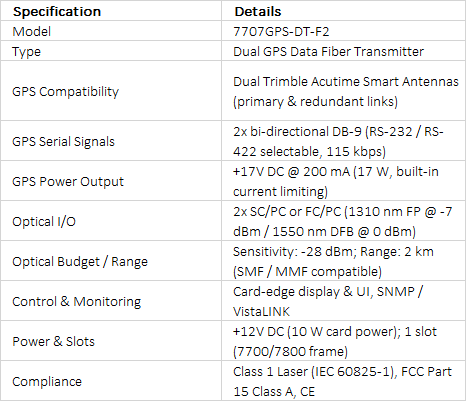

Technical Specifications +

technical specifications
