Evertz

Evertz 7707VAR-3G 3G/HD/SD-SDI Video & 4-AES Audio Fiber Optic Receiver Module

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format Video Reception: Supports 3G-SDI, HD-SDI, SD-SDI, SDTi, and DVB-ASI over fiber.
AES Audio Extraction: Demuxes up to 4 AES/EBU outputs with Dolby E and 24-bit/48kHz support.
Wideband Optical Input: Supports 1270–1610nm wavelengths on single-mode and multi-mode fiber.
High Receiver Sensitivity: Provides -23dBm standard sensitivity or -28dBm with the high-sensitivity option.
Flexible Audio Output: 12-pin terminal block supports 110Ω balanced AES3 or 75Ω unbalanced SMPTE ST 276 operation.
Dual Reclocked Outputs: Provides 2x regenerated SDI BNC outputs with low jitter and fast signal transitions.
Local & Remote Monitoring: Includes 4-digit card-edge diagnostics with SNMP and VistaLINK remote management.
Hot-Swappable Design: 1-slot module compatible with 7801FR, 7800FR, 350FR, and standalone enclosures.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Broadcast Video & Multi-Audio Fiber Demux

The Evertz 7707VAR-3G is a compact fiber optic receiver card designed to work in tandem with its companion transmitter, the 7707VAT-3G. Engineered for critical broadcast transport, event coverage, and facility interconnects, it restores uncompressed 3G-SDI, HD-SDI, or SD-SDI video alongside four demuxed AES/EBU audio streams back to baseband electrical signals over distances up to tens of kilometers.

Flexible Audio Interfacing & Signal Integrity

Equipped with dual regenerated BNC video outputs, the 7707VAR-3G ensures optimal signal distribution at the receiving end without requiring external distribution amplifiers. The 12-pin terminal block accommodates both balanced 110Ω and unbalanced 75Ω AES configurations, ensuring seamless integration with professional audio consoles, servers, and embedded audio environments.

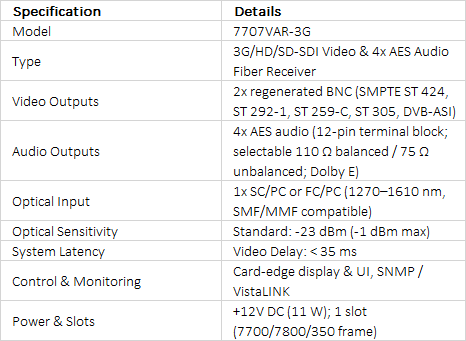

Technical Specifications +

technical specifications
