Key Features

High-Density SFP Carrier: Supports 1, 2, or 4 hot-swappable 3405-series SFP modules per card.
Flexible SFP Options: Supports optical transmitters, receivers, regenerators, and electrical distribution amplifiers.
Multi-Rate Video: Supports 3G-SDI, HD-SDI, SD-SDI, DVB-ASI, and non-reclocked MADI signals.
Flexible Connectivity: Available with 75Ω BNC or high-density DIN 1.0/2.3 coaxial interfaces.
CWDM Support: Provides 16 wavelengths from 1270–1610nm per ITU-T G.694.2 for single-fiber video multiplexing.
Hot-Swappable Design: Supports rear SFP and front carrier-card replacement for minimal downtime.
Remote Monitoring: Provides 4-digit card-edge display, SNMP, and VistaLINK PRO status monitoring.
Signal Conditioning: Offers input cable equalization up to 80m at 3G-SDI with reclocked coaxial outputs.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Modular Fiber Transport

The Evertz 7708SFP series provides card-based SFP carrier integration for the popular Evertz 7700, 7800, and 570 series frame ecosystems. Acting as a modular bridge between coaxial and optical infrastructures, the 7708SFP series allows broadcast facilities to customize each SFP cage with any combination of 3405-series SFP transceivers, receivers, transmitters, or distribution amplifier modules.

Flexible Model Variations & Facility Scaling

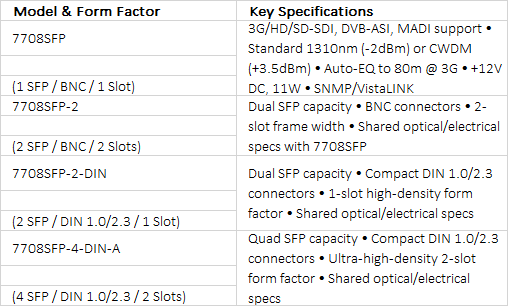

To match diverse density requirements and cable management standards, the 7708SFP family includes four distinct card configurations:

7708SFP: Single SFP module capacity with standard BNC coaxial connectors (1 slot).
7708SFP-2: Dual SFP module capacity with standard BNC coaxial connectors (2 slots).
7708SFP-2-DIN: Dual SFP module capacity with high-density DIN 1.0/2.3 connectors (1 slot).
7708SFP-4-DIN-A: Quad SFP module capacity with ultra-high density DIN 1.0/2.3 connectors (2 slots).
