Evertz 7720AD8-DD-HD HD/SD-SDI Audio De-Embedder & Dolby-E®/AC-3 Decoder with Re-Embedder

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Group Audio Processing: De-embeds up to 4 audio groups from HD-SDI/SD-SDI and re-embeds up to 16 processed channels.
Dolby-E & AC-3 Decoding: Decodes Dolby streams into up to 8 discrete channels plus 2 stereo downmix channels with Dolby metadata handling.
Hardware Bypass Protection: Provides two processed HD/SD-SDI outputs with mechanical program-output bypass during power loss.
AES Audio I/O: Provides 8 AES inputs and 8 outputs via DB-15 with BNC breakout for external audio and Dolby processing.
Lip-Sync Compensation: Provides up to 1.2 seconds of adjustable video/audio delay for Dolby decoding latency compensation.
Dual 16-Channel Mixers: Supports matrix routing, level control, and automatic failover to secondary audio sources.
Optional IntelliGain: Provides real-time loudness normalization while preserving audio dynamic range.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Advanced HD/SD-SDI Audio Processing & Dolby Decoding

The Evertz 7720AD8-DD-HD is an enterprise-grade audio de-embedder, Dolby-E®/AC-3 decoder, and re-embedder designed for demanding broadcast production, multi-channel playout facilities, and post-production environments. Compatible with both 1.5 Gbps HD-SDI and 270 Mbps SD-SDI signals, this dual-slot card extracts embedded audio across four full groups, decodes complex surround-sound Dolby bitstreams, and re-embeds processed audio directly into downstream video feeds.

Comprehensive Metadata Management & Backup Routing

Beyond discrete audio decoding, the 7720AD8-DD-HD handles critical Dolby-E® Metadata via RS-422/485 serial connections or SMPTE 2020 VANC embedding for downstream encoders. To safeguard broadcast continuity, the module provides 8 unbalanced AES inputs that function as backup audio feeds or secondary voice-over channels. If a primary Dolby stream fails or drops out, the onboard routing logic automatically switches to alternative AES backup sources seamlessly.

Dual Audio Mixers & Centralized VistaLINK® Control

Equipped with two 16-channel output audio mixers, a front-panel headphone jack for real-time monitoring of stereo downmixes, and video/audio delay compensation up to 1.2 seconds, the 7720AD8-DD-HD ensures precise audio management. The card can be optioned with Evertz' patented IntelliGain® Loudness Processor to prevent abrupt volume shifts during commercial interstitials. Full system telemetry, Dialnorm adjustments, and remote monitoring are managed via VistaLINK® SNMP or Evertz VUE control panels.

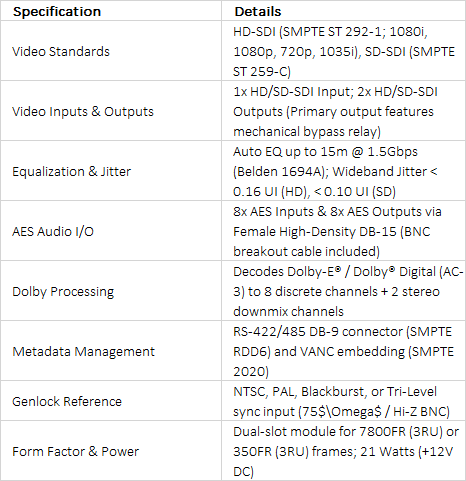

Technical Specifications +

technical specifications
