Evertz

Evertz 7760ND-HD Nielsen Universal Reader Module

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Broadcast Watermark Monitoring: Monitors Nielsen, NAES, and AMOL1/AMOL2 data from HD/SD-SDI feeds.
Audio De-Embedding: Extracts PCM audio from SDI for continuous watermark and telemetry verification.
VistaLINK PRO Integration: Provides Ethernet connectivity for centralized logging, monitoring, and alarms.
Nielsen OSD Output: Displays decoded Nielsen metadata on MVP, VIP-Advanced, and VIP-X systems.
Local Diagnostics: Dot-matrix display and status LEDs show decoded Nielsen codes and SID presence.
Standalone Operation: Eliminates the need for external frame controller cards.
Modular Design: Hot-swappable 2-slot card compatible with Evertz 7800FR 3RU frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Comprehensive Nielsen Code Verification

The Evertz 7760ND-HD Nielsen Universal Reader ensures the integrity of broadcast measurement data across HD-SDI and SD-SDI signal paths. By continuously extracting and decoding embedded video and audio telemetry, the 7760ND-HD verifies that critical audience measurement data reaches downstream transmission systems without corruption or loss.

Multi-Format Watermark & Data Extraction

The module decodes key industry-standard encoding types:

Audio Telemetry: Extract and verify PCM audio watermarks along with NAES audio data.
Video Telemetry: Read and decode AMOL1 and AMOL2 data embedded within video content.
Local Diagnostics: Integrated card-edge LEDs and a multi-character dot-matrix display provide instant visual confirmation of signal input and SID presence.

Seamless Network & Multi-Viewer Integration

Equipped with a native Ethernet port, the 7760ND-HD connects directly to Evertz VistaLINK PRO NMS without requiring an external 7700FC frame controller card. Decoded Nielsen metadata can be routed across the network to display live OSD metrics on Evertz MVP, VIP-Advanced, and VIP-X multi-viewers.

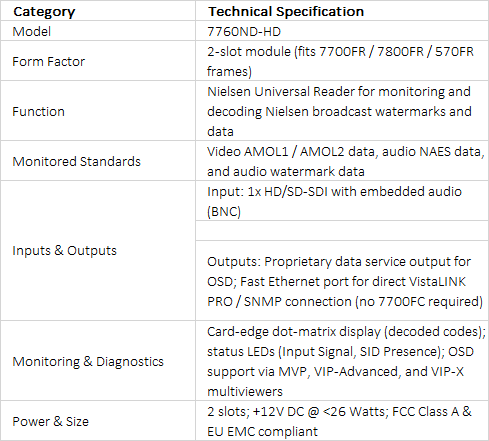

Technical Specifications +

technical specifications
