Key Features

High-Density Capacity: 3RU 7800FR/7800FR-QT frames support up to 15 cards, while the 1RU 7801FR supports up to 4 cards.
Multi-Format Processing: Supports RF, fiber optic, ASI, IP, 3G-SDI, HD-SDI, and SD-SDI modules.
Hot-Swappable Redundancy: Optional dual redundant PSUs and front-access cooling fans enable uninterrupted maintenance.
Flexible Power Options: Supports 100–240V AC, -48V DC (36–60V), or hybrid AC/DC configurations.
Quiet Operation: 7800FR-QT provides approximately -60dBA noise output for control rooms and desk-side installations.
Integrated Genlock: Internal reference buses distribute stable genlock across all slots, reducing external cabling.
VistaLINK SNMP Support: Compatible with 7700FC/7800FC controllers for centralized telemetry, monitoring, and alarms.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Flexible Modular Infrastructure for Evolving Broadcasting

The Evertz 7800 family of multiframes delivers a versatile core infrastructure for modern media production, telecommunications, and broadcast facilities. Designed to adapt alongside rapidly changing industry standards, these frames simultaneously handle RF, optical transport, ASI, IP streams, and multi-rate SDI video formats. With full backward compatibility for Evertz 7800 and 7700 series processing modules and companion rear plates, the chassis array provides maximum flexibility for studio control rooms, mobile OB units, and transmission hubs.

Scalable Chassis Configurations and Quiet Operation Options

To fit diverse rack requirements, the series offers multiple form-factor variants:

7800FR & 7800FR-48VDC (3RU): Standard 15-slot high-density frames delivering up to 360W of total module power (24W per slot).
7800FR-QT (3RU Quiet Frame): Engineered with front and rear low-noise fans (-60dBA), making it ideal for noise-sensitive control rooms and audio suites.
7801FR (1RU): Compact 4-slot frame designed for flight kits, remote utility spaces, or small signal distribution points.

Advanced Thermal Protection and Centralized Telemetry

Built for continuous 24/7 service, all 7800 series frames support hot-swappable dual redundant power supplies, allowing power units and cooling fans to be serviced without interrupting active processing paths. The dual internal frame genlock bus distributes a synchronized reference signal directly across all installed modules, eliminating external BNC loop-throughs. When paired with an Evertz frame controller (7800FC or 7801FC), engineers gain complete VistaLINK SNMP remote supervision, real-time status alarms, and hardware telemetry across local and wide area networks.

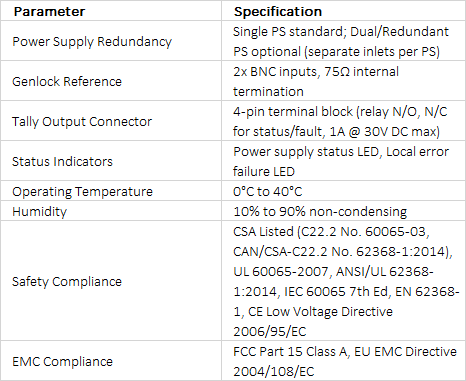

Technical Specifications +

technical specifications
