Evertz 7800DA2T-3G / 7800DA2T-HD | Dual 3G/HD/SD-SDI Bypass Protected Distribution Amplifier (1x6 / Dual 1x3)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Flexible 1x3 / 1x6 Distribution: Configurable as two independent 1x3 DAs or one high-density 1x6 DA.
Dual Bypass Relay Protection: Built-in mechanical relays provide fail-safe passive signal pass-through during power loss or card failure.
Long-Reach Cable Equalization: Supports coaxial runs up to 115m at 3Gb/s, 200m at 1.5Gb/s, and 380m at 270Mbps using Belden 1694A.
Multi-Standard Reclocking: Reclocks 3G-SDI (SMPTE ST 424), HD-SDI (ST 292-1), and SD-SDI (ST 259-1), with non-reclocked pass-through for DVB-ASI, ST 344-1 (540Mbps), and ST 310-1 (19.4Mbps).
High-Density DIN I/O: Uses space-saving DIN 1.0/2.3 rear connectors, supporting up to 14 cards or 28 DAs in a single 3RU 7800FR frame.
Signal Monitoring & Detection: Provides signal presence detection and real-time diagnostic monitoring.
VistaLINK® SNMP Management: Supports remote control and system integration via Evertz VistaLINK® and SNMP.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Mission-Critical Signal Distribution with Fail-Safe Protection

The Evertz 7800DA2T series (available in 3G and HD versions) is a dual-input distribution amplifier designed for critical broadcast infrastructure and main/backup signal distribution. Featuring built-in bypass relays for both inputs, the card ensures uninterrupted signal flow during primary power interruption or module maintenance, making it an ideal core choice for master control and transmission facilities.

Reconfigurable Architecture & Long-Distance Reach

Engineered for adaptability across various workflow requirements, the module can operate in two primary configurations:

Dual 1x3 Mode: Operates as two separate 1x3 distribution amplifiers feeding three reclocked outputs from each independent input.
Single 1x6 Mode: Combines both processing banks to route a single input across six reclocked outputs.

Its industry-leading equalizer stage restores degraded long-distance runs, compensating for losses up to 115m at 3 Gbps, 200m at 1.5 Gbps, and 380m at 270 Mbps over standard broadcast coaxial cable.

High-Density Modular Design & Remote Telemetry

By utilizing compact DIN 1.0/2.3 video connectors on the rear panel, the 7800DA2T occupies just one card slot while providing high output density—enabling up to 14 modules (28 separate distribution amplifiers) inside a 3RU Evertz 7800FR frame. Integrated SNMP capabilities allow broadcast operators to remotely track signal health, input presence, and real-time performance trends through the Evertz VistaLINK® network management ecosystem.

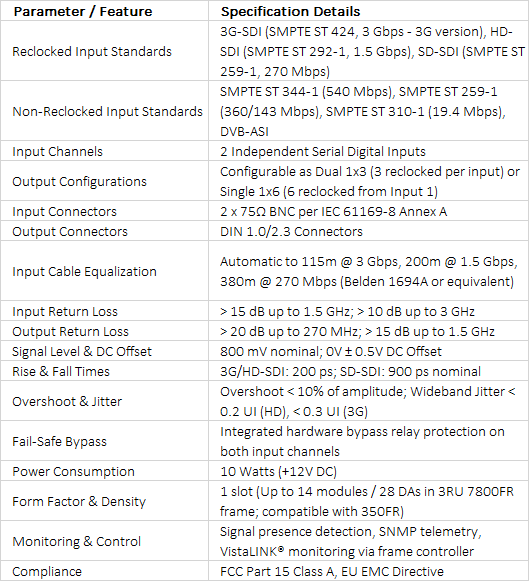

Technical Specifications +

technical specifications
