Evertz 7800FC Frame Controller Module for VistaLINK

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Network Gateway: Provides centralized control and gateway access for Evertz 7800 series frame modules.
Gigabit Ethernet: Supports 10/100/1000BASE-T RJ-45 with auto-negotiation and full-duplex operation.
SNMP Integration: Links 7800FR chassis modules with VistaLINK PRO NMS for centralized monitoring and control.
RS-232 Control: Dedicated DB-9 serial port for local setup, configuration, and debugging.
Web-Based Management: Built-in web server enables direct card management without external software.
FTP Firmware Upgrades: Supports frame-wide firmware upgrades across installed modules.
Diagnostic LEDs: Displays Ethernet link, speed, module fault, and microprocessor status.
Configuration Software: Includes VistaLINK VLPRO-C module configuration tool.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Master Communications Gateway

The Evertz 7800FC Frame Controller card serves as the central management hub for Evertz 7800 series modular frames. By managing all internal chassis communication, the 7800FC acts as a single-IP network gateway, allowing VistaLINK PRO NMS to configure, monitor, and report telemetry for every processing card in the frame.

High-Speed Network & Local Management

Equipped with a auto-negotiating Gigabit Ethernet port, the 7800FC ensures real-time SNMP polling and rapid parameter updates across large broadcast networks:

Embedded Web Server: Provides direct browser-based control and monitoring for supported processing cards.
FTP Upgrades: Facilitates centralized batch firmware updates to cards installed within the chassis.
Local Diagnostics: RS-232 serial interface and card-edge LED arrays deliver instant feedback on network activity, power supply status, card insertion counts, and overall frame health.

Dedicated Frame Architecture

Designed specifically for Slot 1 placement in Evertz 7800FR 3RU frames, the single-slot 7800FC continuously tracks frame status parameters—including redundant power supply conditions—to ensure high availability across mission-critical broadcast infrastructure.

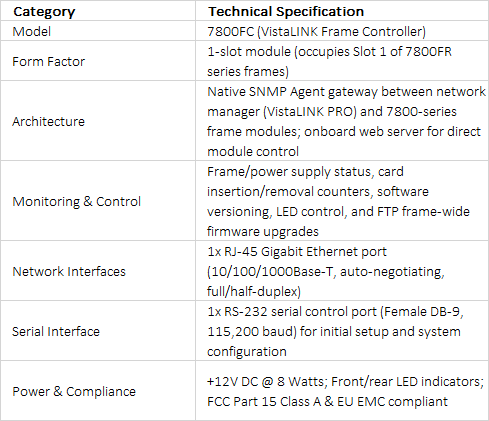

Technical Specifications +

technical specifications
