Evertz 7800IDA2Q-3G / 7800IDA2Q-HD | Dual 3G/HD/SD-SDI Intelligent Distribution Amplifier (1x8 / Dual 1x4)

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Flexible 1x4 / 1x8 Distribution: Configurable as two independent 1x4 DAs or one high-density 1x8 DA.
Automatic Cable Equalization: Supports coaxial runs up to 150m at 3Gb/s, 200m at 1.5Gb/s, and 380m at 270Mbps using Belden 1694A.
Multi-Standard Reclocking: Reclocks 3G-SDI (SMPTE ST 424), HD-SDI (ST 292-1), and SD-SDI (ST 259-1), with non-reclocked pass-through for DVB-ASI, ST 344-1 (540Mbps), and ST 310-1 (19.4Mbps).
High-Density DIN I/O: Uses space-saving DIN 1.0/2.3 rear connectors, supporting up to 14 cards or 28 DAs in a single 3RU 7800FR frame.
Signal Monitoring & Detection: Provides signal presence detection and real-time diagnostic monitoring.
VistaLINK® SNMP Management: Supports remote monitoring, control, and system integration via VistaLINK® and SNMP.
Flexible Frame Compatibility: Occupies one card slot in 3RU 7800FR, 1RU 7801FR, and portable 3RU 350FR frames.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Intelligent Core Distribution for Broadcast Facilities

The Evertz 7800IDA2Q series (available in 3G and HD models) is an intelligent, dual-input reclocking distribution amplifier engineered for high-density broadcast infrastructure and master control routing. Built with auto-sensing equalized inputs, it provides high-quality signal distribution across long cable runs without compromising signal integrity.

Dual 1x4 or Single 1x8 Reconfigurable Routing

Designed for operational flexibility across demanding production environments, the module supports two main operation modes:

Dual 1x4 Mode: Functions as two independent 1x4 distribution amplifiers, delivering four reclocked outputs per input.
Single 1x8 Mode: Combines both output banks to distribute a single input across eight reclocked outputs.

Its advanced input stage restores degraded video signals, compensating for long transmission distances up to 150m at 3 Gbps, 200m at 1.5 Gbps, and 380m at 270 Mbps using broadcast-grade coaxial cable.

High-Density Modular Design & VistaLINK® Telemetry

Utilizing compact DIN 1.0/2.3 outputs on the rear connector, the 7800IDA2Q delivers high port density while occupying just one card slot. Broadcast facilities can pack up to 14 modules (28 individual distribution amplifiers) into a 3RU 7800FR frame. Integrated VistaLINK® and SNMP capabilities enable real-time telemetry, input signal presence monitoring, and centralized configuration via the 7800FC Frame Controller.

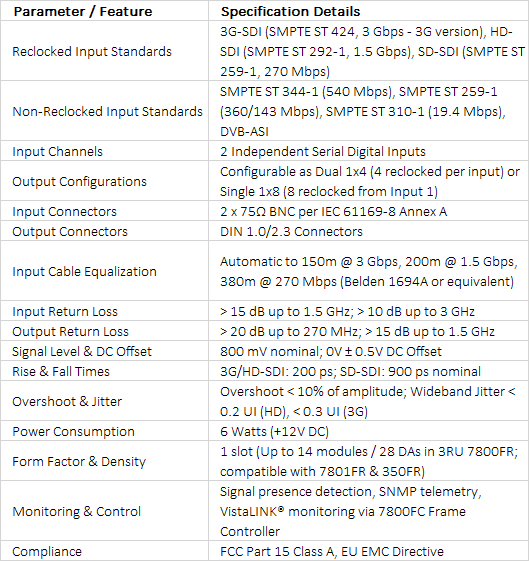

Technical Specifications +

technical specifications
