Evertz 7800IDA8-3G 3G/HD/SD-SDI Intelligent 1x8 Reclocking Distribution Amplifier

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x8 SDI Distribution: Distributes one 3G/HD/SD-SDI input to eight reclocked outputs via Mini-DIN 1.0/2.3.
Multi-Rate SDI Support: Auto-detects 3G-SDI (ST 424M), HD-SDI (ST 292-1), and SD-SDI (ST 259-C).
Long-Reach Equalization: Supports cable runs up to 100m @ 3G, 140m @ 1.5G, and 400m @ 270M on Belden 1694A.
Signal Monitoring: Detects video loss, freeze, black, and embedded audio overload, underload, or silence.
Optional Audio Processing: Supports channel shuffling, stereo-to-5.1 upmixing (+UMX), 5.1-to-stereo downmixing (+DMX), and IntelliGain® (+IG).
Optional IntelliTrak™: Provides lip-sync alignment for accurate audio-to-video timing.
VistaLINK® SNMP: Enables remote telemetry, alarm logging, and signal trend monitoring via 7700FC/7800FC controllers.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance Distribution with Broadcast Intelligence

The Evertz 7800IDA8-3G is a 3G/HD/SD-SDI reclocking distribution amplifier engineered for broadcast facilities, production trucks, and playout centers. Going beyond standard signal splitting, the card combines robust signal conditioning with active video and audio health monitoring. Its long-reach input equalization restores degraded digital video signals across extended coaxial runs, feeding eight clean, reclocked outputs via space-saving Mini-DIN 1.0/2.3 connections.

Optional Advanced DSP & Audio Processing

Unlike traditional passive or basic active distribution amplifiers, the 7800IDA8-3G can be equipped with advanced audio processing options. Broadcast operators can add mono audio channel shuffling, stereo-to-5.1 surround upmixing (+UMX), 5.1 downmixing (+DMX), or award-winning IntelliGain® loudness control (+IG) to prevent commercial volume spikes. For multi-path facilities subject to variable video latency, the IntelliTrak™ option (+IT) automatically maintains accurate lip-sync alignment.

High-Density Modular Integration

Occupying a single slot in Evertz modular enclosures, up to 14 cards can be installed in a single 3RU frame (7800FR) for maximum output density. Complete module setup, signal status reporting, and automated SNMP trap management are handled centrally through a 7700FC or 7800FC frame controller using Evertz VistaLINK® network management software.

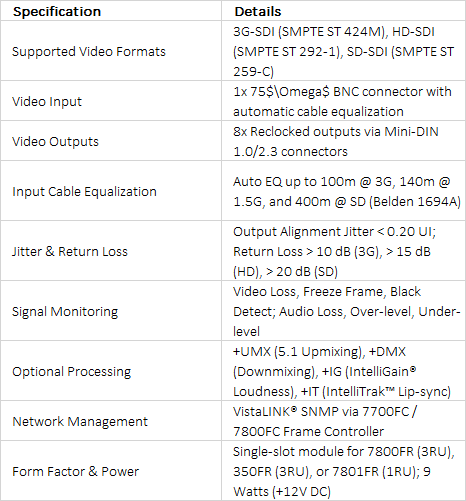

Technical Specifications +

technical specifications
