Evertz 7800IDA8-3G-F | 3G/HD/SD-SDI Intelligent 1x8 Distribution Amplifier with Dual Optical SFP Outputs

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Hybrid Coaxial & Optical Distribution: Provides eight reclocked Mini DIN electrical outputs plus two optical outputs via an optional dual-transmitting SFP from a single SDI input.
Multi-Rate SDI Auto-Detection: Supports automatic detection and conditioning of 3G-SDI (SMPTE ST 424), HD-SDI (SMPTE ST 292-1), and SD-SDI (SMPTE ST 259-C).
Extended Cable Equalization: Compensates for cable losses up to 100m at 3G-SDI, 140m at 1.5Gb/s HD-SDI, and 350m at 270Mb/s SD-SDI over Belden 1694A.
Dual Optical Transmission: Supports an optional rear-mounted SFP with dual 1310nm LC/UPC optical transmitters, delivering -2dBm ±1dBm per port.
VistaLINK® Telemetry & Monitoring: Provides signal presence detection, parameter monitoring, and real-time trend logging via SNMP with an Evertz frame controller.
High-Density Modular Integration: Occupies one slot in the 3RU 7800FR frame, supporting up to 14 modules and compatibility with 7801FR 1RU and 350FR portable frames.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Hybrid Coaxial and Fiber Distribution

The Evertz 7800IDA8-3G-F is an advanced 1x8 reclocking distribution amplifier engineered for long-distance broadcast transmission, campus transport, and high-density master control routing. Combining multi-rate SDI equalization with an integrated optical SFP expansion slot, it simultaneously drives eight coaxial connections and two long-haul fiber optic lines from a single video source.

Flexible Optical Transport & Cable Recovery

Designed to overcome long cable run limitations in broadcast infrastructure:

Optical Extension: Equipped with an SFP slot on the rear panel that accepts an optional dual-transmitting optical SFP module (1310nm LC/UPC connectors), driving two identical optical copies (-2dBm nominal power) alongside the coax outputs.
Adaptive Input Equalization: Multi-stage equalization recovers heavily attenuated signals across coaxial runs up to 100 meters at 3G-SDI, 140 meters at HD-SDI, and 350 meters at SD-SDI bitrates.
Pristine Reclocking: Reclocks incoming streams to minimize output jitter (<0.20 UI) and maintain signal integrity across downstream production equipment.

Network Supervision & High-Density Modular Deployment

Integrated into the Evertz 7800 modular ecosystem, the 7800IDA8-3G-F occupies a single slot across 3RU 7800FR (up to 14 cards), 1RU 7801FR (up to 4 cards), or 3RU 350FR portable enclosures. Full compatibility with the 7800FC Frame Controller allows centralized SNMP management, real-time signal health telemetry, and automated fault reporting in VistaLINK® NMS environments.

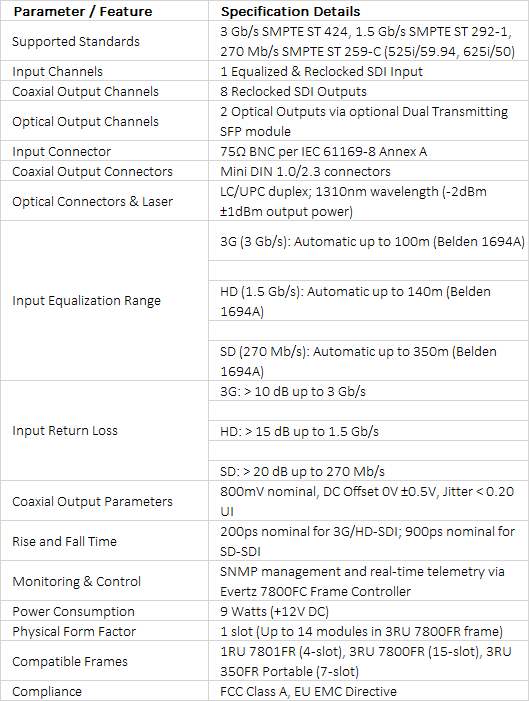

Technical Specifications +

technical specifications
