Evertz 7800IDA8 / 7800IDA8-3G | 3G/HD/SD-SDI Intelligent 1x8 Distribution Amplifier with Audio Processing & Signal Monitoring

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

1x8 Reclocked SDI Distribution: Provides one SDI input to eight reclocked and signal-conditioned outputs via high-density Mini DIN 1.0/2.3 rear connectors.
Multi-Rate SDI Support: Supports 3G-SDI (SMPTE 424M), HD-SDI (SMPTE ST 292-1), and SD-SDI (SMPTE ST 259-C) standards (-3G model).
Extended Cable Equalization: Recovers signals up to 100m at 3G-SDI, 140m at 1.5Gb/s HD-SDI, and 400m at 270Mb/s SD-SDI over Belden 1694A cable.
Broadcast Signal Monitoring: Detects video loss, black/freeze conditions, and audio loss or over/under-level faults with real-time SNMP alarm logging.
Modular Audio Processing: Supports optional embedded audio shuffling, IntelliTrak™ lip-sync correction (+IT), ITU loudness control (+IG), stereo-to-5.1 upmixing (+UMX), and 5.1-to-stereo downmixing (+DMX).
High-Density 7800 Integration: Occupies one slot in the 3RU Evertz 7800FR frame, supporting up to 14 modules with 7700FC or 7800FC Frame Controllers.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

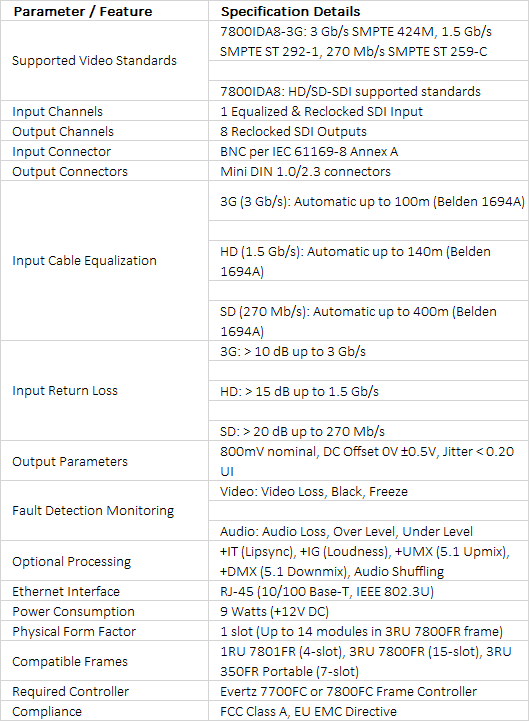

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Distribution with Built-In Signal Quality Assurance

The Evertz 7800IDA8 and 7800IDA8-3G are intelligent 1x8 reclocking distribution amplifiers designed for mission-critical broadcast facilities, master control environments, and mobile production trucks. Combining long-reach cable equalization with multi-stage reclocking and comprehensive signal fault detection, these modules go beyond traditional distribution to safeguard video and audio streams across complex infrastructures.

Comprehensive Video and Audio Telemetry

Unlike traditional distribution amplifiers, the 7800IDA8 series actively monitors video and embedded audio parameters to identify transmission issues before they impact broadcast output:

Video Diagnostics: Real-time detection and alarm reporting for Video Loss, Black Frame, and Frozen Video conditions.
Audio Diagnostics: Continuous telemetry for Audio Loss, Audio Clipping (Over), and Silence (Under) conditions.
VistaLINK® NMS Control: Integrated SNMP reporting via Evertz Frame Controllers enables centralized remote tracking and automated signal health alerts.

Flexible Audio Processing Upgrades

The module supports modular software options that transform a single distribution point into an integrated audio processing engine:

IntelliTrak™ Lipsync Control (+IT): Award-winning automatic audio-to-video delay compensation.
Loudness Control (+IG): Maintains ITU-R BS.1770 / EBU R128 loudness compliance across broadcast channels.
Upmixing & Downmixing (+UMX / +DMX): Seamlessly converts 2-channel stereo to 5.1 surround sound or downmixes 5.1 surround feeds to stereo formats.
Embedded Audio Shuffling: Enables flexible remapping and shuffling of mono audio channels across streams (+UMX, +DMX, or +IG options).
