Evertz 7800MDM-12G | 12G to/from Quad-Link 3G Bi-Directional Converter for UHD Signals

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Bi-Directional UHD Conversion: Multiplexes quad-link 3G-SDI to 12G-SDI (SMPTE ST 2082) and demultiplexes 12G-SDI back to quad-link 3G-SDI.
SQD & 2SI Support: Supports Square Division (SQD) and Two-Sample Interleave (2SI), including conversion between both quad-link formats.
Level A & B Compatibility: Supports Level A and Level B 3G-SDI signals across quad-link UHD configurations.
High-Density Modular Design: Fits a single-slot 7800FR frame footprint for space-efficient UHD signal processing.
Dual 12G-SDI I/O: Provides software-selectable dual 12G-SDI inputs and outputs via -HDBNC-R or optional SFP modules.
Flexible Signal Distribution: Supports built-in 12G-SDI signal routing for streamlined UHD distribution workflows.
Remote Monitoring & Control: Supports VistaLINK® SNMP, device-hosted Web GUI, and VUE control panels including VUE-CP232 and VUE-TOUCH2-12R.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density 12G/Quad-Link 3G Interoperability

The Evertz 7800MDM-12G addresses the critical bridge between legacy quad-link 3G-SDI infrastructure and single-link 12G-SDI (SMPTE ST 2082) Ultra High Definition (UHD) environments. Functioning as a high-density, bi-directional multiplexer and demultiplexer, a single card can perform format transformations in both directions simultaneously. This enables seamless integration between 12G-SDI cameras, switchers, and routers and legacy quad-link 3G production equipment.

Advanced Signal Transformation & Mapping

Engineered for ultimate UHD routing flexibility, the 7800MDM-12G supports both Square Division (SQD) and Two-Sample Interleave (2sI) signal mappings across 3G-SDI Level A and Level B formats. The card features internal cross-conversion capabilities, allowing input SQD quad-link signals to be output as 2sI quad-link (or vice versa), simplifying interconnectivity between differing manufacturers' UHD transport implementations.

Redundant I/O Flexibility and Frame Integration

Designed to occupy just a single slot in Evertz 7800FR 3RU and 7801FR 1RU frames, the module offers high channel density for space-constrained broadcast applications. Dual 12G inputs feature software-selectable active switching, while dual 12G outputs allow built-in distribution without requiring external DA hardware. Fully manageable via VistaLINK® or standalone Web GUI, the 7800MDM-12G provides real-time signal monitoring, status reporting, and remote control.

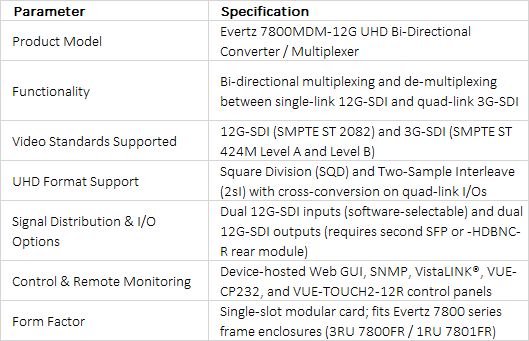

Technical Specifications +

technical specifications
