Evertz 7801FC Frame Controller Module for 7801FR Frame

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

SNMP Control Gateway: Centralized control for Evertz 7801FR 1RU frame modules.
Gigabit Ethernet: Supports 10/100/1000BASE-T with auto-negotiation and full/half-duplex operation.
VistaLINK PRO Integration: Provides unified communication between frame cards and VistaLINK PRO NMS.
WebEASY Interface: Enables direct browser-based card control and management.
FTP Firmware Updates: Supports automated frame-wide firmware upgrades over the network.
Chassis Monitoring: Provides real-time power supply and card insertion status.
Dedicated Slot: Uses Slot 0 to preserve processing card capacity.
Configuration Software: Includes Evertz VLPRO-C module configuration utility.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dedicated 1RU Frame Management

The Evertz 7801FC Frame Controller card acts as the primary network interface for the compact Evertz 7801FR 1RU multi-frame system. Operating as a single-IP network gateway, it translates SNMP commands from the VistaLINK Network Management System (NMS) to manage and configure all installed processing modules.

Network Control & Web Integration

Equipped with a high-speed Gigabit Ethernet interface, the 7801FC ensures real-time alarm reporting and configuration management across the network:

WebEASY Interface: Access browser-based control pages to manage compatible frame modules without requiring standalone software installations.
Firmware Maintenance: Supports FTP upgrades for batch updating firmware on supported cards throughout the frame.
Local Diagnostics: Card-edge and rear-panel LED indicators display Ethernet link status, speed, microprocessor health, and module fault conditions instantly.

Optimized Chassis Footprint

Occupying dedicated Slot 0 inside the 7801FR 1RU chassis, the 7801FC monitors vital frame parameters—including power supply health and card insertion counters—without consuming valuable signal processing slots.

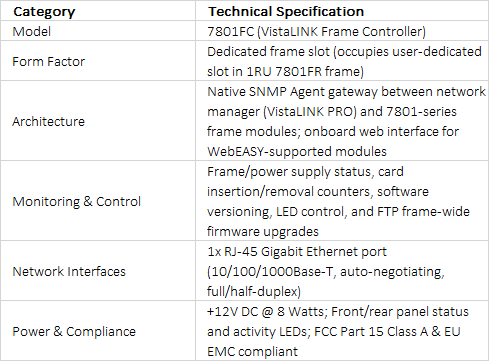

Technical Specifications +

technical specifications
