Evertz 7801FC VistaLINK Frame Controller | 1RU Gigabit Ethernet Network Manager Card

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dedicated 1RU Frame Controller: Designed for the Evertz 7801FR chassis without consuming processing card slots.
Gigabit Ethernet Connectivity: Provides auto-negotiating 10/100/1000BASE-T RJ-45 network connectivity.
Native SNMP Agent: Provides direct SNMP communication between the 7801FR frame and VistaLINK NMS.
WebEASY Interface: Enables browser-based monitoring and parameter control of supported frame modules.
FTP Firmware Updates: Supports centralized firmware upgrades across installed frame modules.
Real-Time Telemetry: Monitors PSU health, frame status, card insertion/removal, and firmware versions.
Diagnostic LEDs: Card-edge and rear LEDs indicate faults, processor activity, Ethernet link, and speed status.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Centralized Gateway for 1RU Modular Systems

The Evertz 7801FC VistaLINK Frame Controller serves as the central communication and monitoring hub for the compact 1RU 7801FR multiframe. Operating as a native SNMP agent, the card establishes a direct connection between the chassis and network management systems (NMS) over standard IP networks. By utilizing a dedicated slot (Slot 0) within the 7801FR frame, the 7801FC delivers full single-point remote access without reducing the frame's 4-card processing slot capacity.

High-Speed Network Control and WebEASY Management

Equipped with an auto-negotiating Gigabit Ethernet (10/100/1000BASE-T) RJ-45 interface, the 7801FC ensures high-throughput, low-latency telemetry transmission across broadcast infrastructure. In addition to full integration with Evertz VistaLINK Pro (VLPRO-C) software, the controller features an onboard web interface. This allows broadcast engineers and technicians to inspect status and configure settings on WebEASY-enabled modules directly through any standard web browser. Centralized FTP firmware transfer capability further simplifies facility maintenance by enabling frame-wide software updates.

Comprehensive Telemetry and Local Status Monitoring

Engineered for continuous operation in broadcast trucks, utility rooms, and transmission facilities, the 7801FC continuously gathers critical frame metrics. Through SNMP, the controller reports power supply health, frame alarm conditions, module insertion/removal counters, and installed firmware versions. Multi-color card-edge and rear-panel LEDs provide immediate, clear visual feedback regarding microprocessor status, hardware faults, network link speeds, and active data traffic.

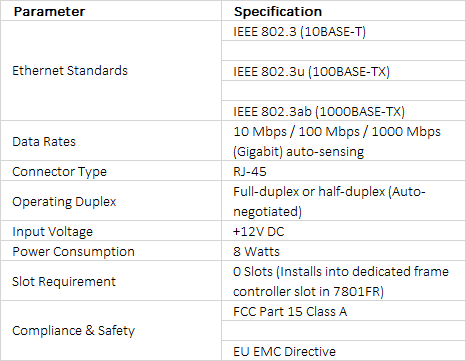

Technical Specifications +

technical specifications
