Evertz 7814UDX-2 / 7814UC-2 / 7814HDC-2 / 7814XC-2 Series Dual Path 3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path Architecture: Provides two independent processing and conversion channels on a single two-slot card.
Multi-Format SDI Conversion: Supports SD-SDI, HD-SDI, and optional 3G-SDI (SMPTE 259M/292M/424M).
Advanced Video Processing: Includes 3D noise reduction, motion-adaptive de-interlacing, detail enhancement, and RGB color legalization.
Frame Synchronization: Supports card genlock and two software-selectable 7800FR frame reference sources.
Aspect Ratio & AFD: Provides standard/custom ARC modes with frame-accurate AFD processing and SMPTE 2016 code stamping.
Audio & Caption Processing: Handles 16 embedded audio channels per path, auto-tracking delay, 5.1-to-stereo downmixing, and CEA-608/708 translation.
Flexible I/O Options: Supports optional SFP optical/coaxial I/O with automatic failover and discrete AES I/O on -AES8 models.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dual-Channel Processing

The Evertz 7814UDX-2 series provides two completely independent channels of broadcast-quality up, down, and cross conversion in a dual-slot modular form factor. Designed for master control, live production trucks, and playout facilities, each path contains a frame synchronizer to seamlessly align non-synchronous video sources. The card supports multi-rate conversions across SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G-SDI (SMPTE 424M on -3G versions) environments using card or frame genlock reference connections.

Advanced Motion-Adaptive Video & Color Engine

Engineered for uncompromised image fidelity, the 7814UDX-2 series incorporates 3D spatial-temporal noise reduction and adaptive de-interlacing to eliminate motion artifacts during format conversion. Built-in RGB color legalizers, detail enhancement engines, and ITU Rec. 709 $\Leftrightarrow$ 601 color space transformation maintain broadcast signal compliance. Full Active Format Description (AFD / SMPTE 2016) support guarantees automatic, frame-accurate aspect ratio adjustments across multi-platform content distribution chains.

Deep Audio DSP, Flexible I/O & Network Control

Each processing channel handles 16 embedded audio channels with automatic video delay tracking to maintain lip-sync alignment. Depending on card options, systems can be expanded with discrete AES I/O (-AES8), Dolby encoding/decoding (-DAP), stereo-to-5.1 surround upmixing (+UMX2), and IntelliGain® loudness management (+IG2). Dual-channel optical/coaxial SFP I/O is supported on "-F" variants with manual or auto-failover switching. Remote setup, monitoring, and status reporting are fully supported via VistaLINK® SNMP or VUE touch panels when paired with Evertz 7700FC, 7800FC, or 7801FC frame controllers.

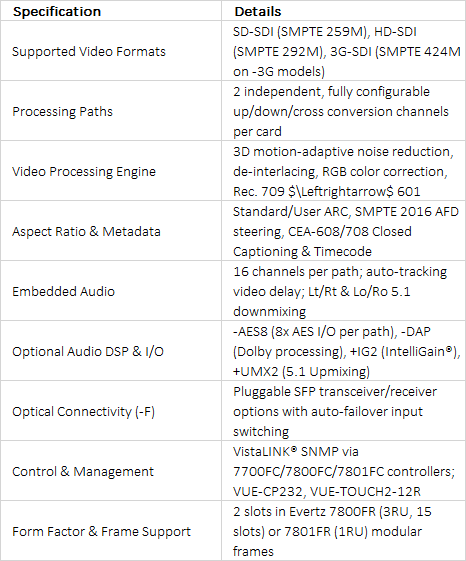

Technical Specifications +

technical specifications
