Evertz 7814UDX-2 / 7814UC-2 / 7814HDC-2 / 7814XC-2 Series Dual Path 3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path Architecture: Processes two independent video streams on a single two-slot card.
Multi-Format SDI Conversion: Supports up, down, and cross conversion between SD-SDI, HD-SDI, and optional 3G-SDI (SMPTE 259M/292M/424M).
Advanced Video Processing: Includes 3D spatial-temporal noise reduction, next-gen de-interlacing, detail enhancement, and RGB color legalization.
Frame Synchronization: Aligns incoming sources to card reference or software-selectable dual frame references.
Aspect Ratio & AFD: Supports standard/custom ARC modes with frame-accurate AFD processing and SMPTE 2016 steering/stamping.
16-Channel Audio DSP: Provides auto-tracking delay, 5.1-to-stereo downmixing, optional -AES8 AES I/O, +IG2 IntelliGain®, +UMX2 upmixing, and -DAP Dolby processing.
Pluggable Optical I/O: Optional -F variants support selectable coaxial/optical SFP inputs with automatic failover and fiber outputs.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dual-Channel High-Density Broadcast Conversion

The Evertz 7814UDX-2 series provides two fully independent paths of broadcast-quality up, down, and cross conversion within a single two-slot modular frame card. Engineered for live production environments, master control, and playout facilities, each path contains a dedicated frame synchronizer to align asynchronous video feeds. The series supports conversion across SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G-SDI (SMPTE 424M on -3G variants) using card-level or dual frame-level genlock references.

Motion-Adaptive Processing & Color Legalization

Designed for maximum visual fidelity, the 7814UDX-2 series uses 3D spatial-temporal noise reduction and adaptive de-interlacing to eliminate unwanted motion artifacts during format translation. Integrated broadcast color correction, detail enhancement processors, and RGB color legalization ensure full signal compliance, while ITU Rec. 709 ⇔ 601 color space conversion automatically handles standard-definition and high-definition color gamut alignment. Full SMPTE 2016 Active Format Description (AFD) support maintains accurate, frame-accurate aspect ratio steering across multi-platform workflows.

Comprehensive Audio DSP & Remote Management

Each processing channel transparently handles 16 embedded audio channels with automatic video delay tracking to maintain accurate lip-sync alignment. Depending on system needs, options include discrete AES I/O (-AES8), Dolby decoding/encoding (-DAP), stereo-to-5.1 upmixing (+UMX2), and IntelliGain® loudness control (+IG2). The "-F" card versions add pluggable SFP transceivers for fiber optic connectivity with software-driven automatic failover between coaxial and optical inputs. System configuration and telemetry are managed via VistaLINK® SNMP or VUE touch panels when integrated with 7700FC, 7800FC, or 7801FC frame controllers.

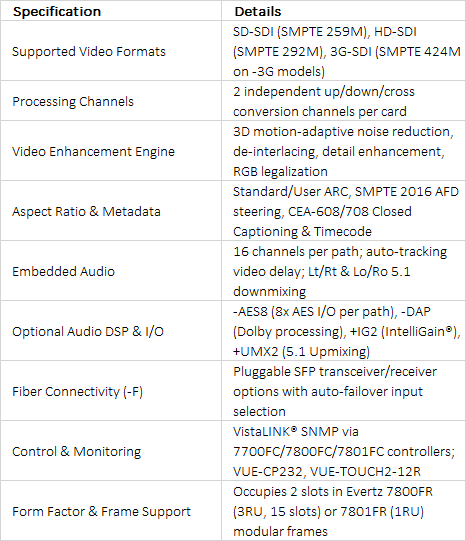

Technical Specifications +

technical specifications
