Evertz 7814UDX-2 / 7814UC-2 / 7814HDC-2 / 7814XC-2 Series Dual Path 3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path Architecture: Provides two independent processing and conversion paths on a single two-slot card.
Multi-Format SDI Conversion: Supports SD-SDI, HD-SDI, and optional 3G-SDI (SMPTE 259M/292M/424M).
Advanced Video Processing: Includes 3D spatial-temporal noise reduction, next-gen de-interlacing, detail enhancement, and RGB color legalization.
Frame Synchronization: Aligns asynchronous feeds to card genlock or two software-selectable 7800FR frame references.
Aspect Ratio & AFD: Supports standard/custom ARC modes with frame-accurate AFD processing and SMPTE 2016 steering/stamping.
16-Channel Audio DSP: Provides auto-tracking delay, 5.1-to-stereo downmixing, optional -AES8 AES I/O, +IG2 IntelliGain®, +UMX2 upmixing, and -DAP Dolby processing.
Flexible Fiber I/O: Optional -F variants support selectable coaxial/optical SFP inputs with automatic failover and optical outputs.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dual-Channel High-Density Broadcast Processing

The Evertz 7814UDX-2 series provides two fully independent paths of broadcast-quality up, down, and cross conversion within a single two-slot modular frame card. Engineered for master control, live production trucks, and playout facilities, each path contains a dedicated frame synchronizer to align non-synchronous video sources. The card supports multi-rate conversions across SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G-SDI (SMPTE 424M on -3G versions) environments using card or frame genlock reference connections.

Advanced Motion-Adaptive Video & Color Engine

Engineered for maximum image fidelity, the 7814UDX-2 series incorporates 3D spatial-temporal noise reduction and adaptive de-interlacing to eliminate motion artifacts during format conversion. Built-in RGB color legalizers, detail enhancement engines, and ITU Rec. 709 ⇔ 601 color space transformation maintain full broadcast signal compliance. Active Format Description (AFD / SMPTE 2016) support guarantees automatic, frame-accurate aspect ratio adjustments across multi-platform content distribution chains.

Audio DSP, Data Processing & System Control

Each processing channel transparently handles 16 embedded audio channels with automatic video delay tracking to maintain accurate lip-sync alignment. Full CEA 608/708 Closed Captioning and timecode re-calculation are performed automatically across format conversions. System options include discrete AES I/O (-AES8), Dolby decoding/encoding (-DAP), stereo-to-5.1 surround upmixing (+UMX2), and IntelliGain® loudness management (+IG2). Optical I/O is supported on -F variants with manual or auto-failover switching. Remote setup, monitoring, and status reporting are fully supported via VistaLINK® SNMP or VUE touch panels when paired with Evertz 7700FC, 7800FC, or 7801FC frame controllers.

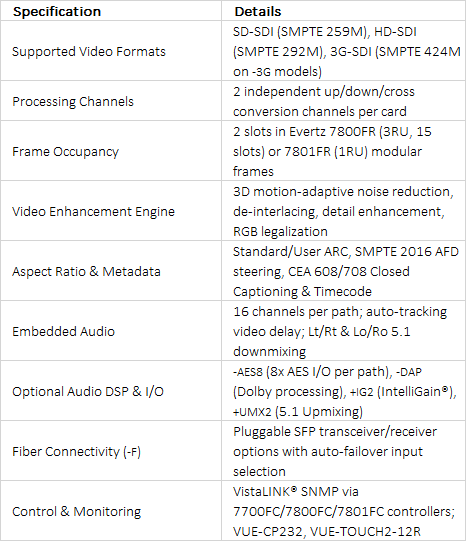

Technical Specifications +

technical specifications
