Evertz 7814UDX-2 / 7814UC-2 / 7814HDC-2 / 7814XC-2 Series Dual Path 3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path Modular Converter: Provides two independent processing and conversion paths on a single 2-slot card.
Multi-Format SDI Conversion: Supports SD-SDI, HD-SDI, and 3G-SDI conversion (SMPTE 259M/292M/424M).
Advanced Video Processing: Includes 3D noise reduction, next-gen de-interlacing, detail enhancement, and Rec. 709/601 color transformation with RGB legalization.
Frame Synchronization: Supports dual frame synchronizers with card reference or selectable 7800FR genlock sources.
Aspect Ratio & AFD: Provides standard/custom ARC modes with frame-accurate SMPTE 2016 AFD steering and stamping.
16-Channel Audio DSP: Supports delay tracking, channel swapping, gain, inversion, 5.1 downmixing, optional AES I/O, IntelliGain®, upmixing, and Dolby processing.
Optional Optical SFP I/O: -F variants provide optical I/O with manual selection or automatic video-loss failover.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dual-Channel High-Density Broadcast Converter

The Evertz 7814UDX-2 series provides two fully independent, broadcast-quality up, down, and cross conversion channels on a single modular card occupying two slots in Evertz 7800FR (3RU) or 7801FR (1RU) frames. Engineered for high-density control rooms, mobile production units, and playout hubs, the series converts between SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and optional 3G-SDI (SMPTE 424M with -3G versions). Each channel includes a dedicated frame synchronizer, allowing seamless timing adjustments against local card genlock or dual frame reference inputs.

Advanced Motion-Adaptive Processing & Metadata Management

Equipped with motion-adaptive 3D spatial-temporal noise reduction and next-generation de-interlacing, the 7814UDX-2 series removes interlace artifacts and video noise without compromising resolution. Built-in color correctors, detail enhancement engines, and ITU Rec. 709 ⇔ 601 color space conversion ensure strict adherence to broadcast standards. Full Active Format Description (AFD / SMPTE 2016) handling enables frame-accurate aspect ratio adjustments, while CEA 608/708 Closed Captioning and timecode data are re-calculated and translated transparently across format transitions.

Comprehensive Audio DSP, Fiber Options & System Monitoring

Each channel processes 16 embedded audio channels with automatic video delay tracking to maintain lip-sync alignment. Advanced audio options include stereo-to-5.1 surround upmixing (+UMX2), IntelliGain® loudness management (+IG2), Dolby encoding/decoding (-DAP), and 8 discrete AES I/O pairs per path (-AES8). SFP-equipped -F variants support pluggable optical transceivers with software-controlled automatic failover between coax and fiber feeds. Centralized configuration and SNMP status monitoring are facilitated via VistaLINK® using 7700FC/7800FC/7801FC frame controllers or hardware VUE control panels.

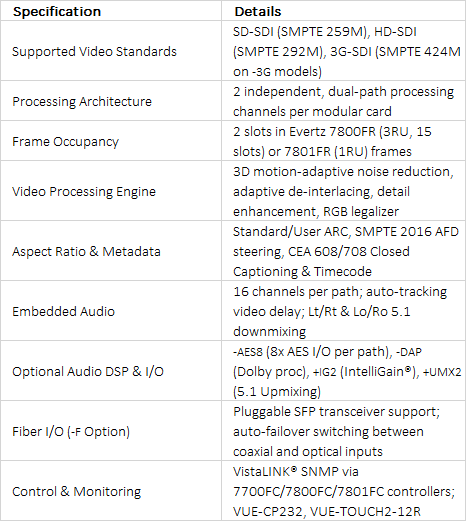

Technical Specifications +

technical specifications
