Evertz 7814UDX-2 / 7814UC-2 / 7814HDC-2 / 7814XC-2 Series Dual Path 3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path Architecture: Provides two independent processing and conversion channels on a single 2-slot module.
Multi-Format SDI Conversion: Supports SD-SDI, HD-SDI, and optional 3G-SDI (SMPTE 259M/292M/424M).
Advanced Video Processing: Includes 3D noise reduction, next-gen de-interlacing, detail enhancement, and Rec. 709/601 color transformation with RGB legalization.
Frame Synchronization: Synchronizes asynchronous feeds to card reference or two selectable 7800FR frame genlock sources.
Aspect Ratio & AFD: Supports standard/custom ARC modes with frame-accurate SMPTE 2016 AFD steering and stamping.
16-Channel Audio DSP: Supports delay tracking, channel swapping, gain, inversion, 5.1 downmixing, optional AES I/O, IntelliGain®, 5.1 upmixing, and Dolby processing.
Flexible Optical I/O: -F variants provide selectable coaxial/optical SFP inputs with automatic signal-loss failover.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dual-Channel High-Density Broadcast Converter

The Evertz 7814UDX-2 series provides two fully independent, broadcast-quality up, down, and cross conversion channels on a single modular card occupying two slots in Evertz 7800FR (3RU) or 7801FR (1RU) frames. Engineered for master control rooms, mobile production trucks, and playout facilities, the series converts between SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and optional 3G-SDI (SMPTE 424M with -3G versions). Each channel includes a dedicated frame synchronizer, allowing timing adjustments against local card genlock or dual frame reference inputs.

Motion-Adaptive Processing & Metadata Translation

Equipped with motion-adaptive 3D spatial-temporal noise reduction and next-generation de-interlacing, the 7814UDX-2 series eliminates interlace artifacts and video noise while preserving fine picture detail. Built-in color correctors, detail enhancement engines, and ITU Rec. 709 ⇔ 601 color space conversion ensure strict adherence to broadcast standards. Full Active Format Description (AFD / SMPTE 2016) handling enables frame-accurate aspect ratio adjustments, while CEA 608/708 Closed Captioning and timecode data are re-calculated and translated transparently across format transitions.

Comprehensive Audio DSP, Fiber Options & System Monitoring

Each channel processes 16 embedded audio channels with automatic video delay tracking to maintain accurate lip-sync alignment. Advanced audio options include stereo-to-5.1 surround upmixing (+UMX2), IntelliGain® loudness management (+IG2), Dolby encoding/decoding (-DAP), and 8 discrete AES I/O pairs per path (-AES8). SFP-equipped -F variants support pluggable optical transceivers with software-controlled automatic failover between coaxial and fiber inputs. Centralized configuration and SNMP status monitoring are facilitated via VistaLINK® using 7700FC, 7800FC, or 7801FC frame controllers or hardware VUE control panels.

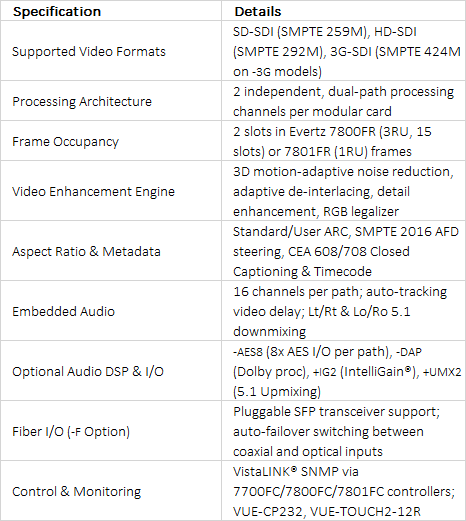

Technical Specifications +

technical specifications
